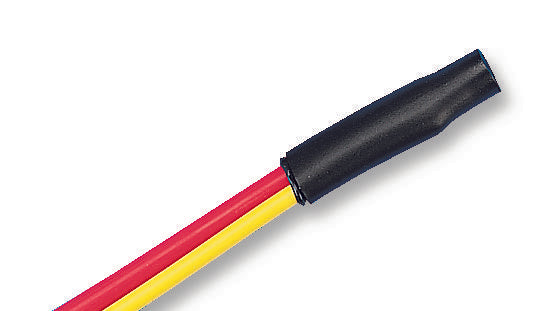

RAYCHEM - TE CONNECTIVITY - PD 3/8-0 - Heat Shrink Boot, PD-Caps Encapsulant Lined, End Cap, 0.374 ", 9.5 mm, Black, 1.25 ", 31.8 mm
- Boot Configuration: End Cap
- I.D. Supplied - Imperial: 0.374"
- I.D. Supplied - Metric: 9.5mm
- Shrink Tubing / Boot Colour: Black
- Total Length - Imperial: 1.25"
- Total Length - Metric: 31.8mm
- I.D. Recovered Max - Imperial: 0.09"
- I.D. Recovered Max - Metric: 2.3mm
- Shrink Tubing / Boot Material: PO (Polyolefin)
- Shrink Ratio: 3
- Product Range: -
- Accessory Type: Heat Shrink End Cap
- Body Material: PO (Polyolefin)
- Cable Diameter Max: 9.5mm
- Cable Diameter Min: 2.29mm
- Colour: Black
- External Length / Height: 30.5mm
- Fully Shrunk Diameter: 2.3mm
- I.D. Max Recovered: 2.3mm
- I.D. Supplied: 9.5mm
- Internal Diameter: 9.5mm
- Length - Imperial: 1.25"
- Length - Metric: 31.8mm
- Material: PO (Polyolefin)
- Operating Temperature Max: 110°C
- Operating Temperature Min: -55°C
- Shrink Temperature: 125°C
- Shrink Type: Heat
- Unshrunk Diameter: 9.5mm
- Wall Thickness: 2.1mm
