NEXPERIA - PDTB113ZT,215 - Bipolar Pre-Biased / Digital Transistor, BRT, Single PNP, -50 V, -500 mA, 1 kohm, 10 kohm
- Digital Transistor Polarity: Single PNP
- Collector Emitter Voltage V(br)ceo: -50V
- Continuous Collector Current Ic: -500mA
- Base Input Resistor R1: 1kohm
- Base-Emitter Resistor R2: 10kohm
- Resistor Ratio, R1 / R2: -

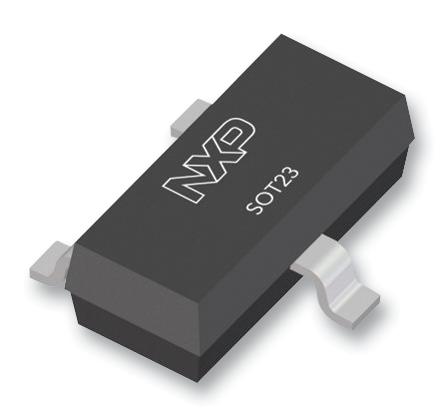

- RF Transistor Case: SOT-23
- No. of Pins: 3 Pin
- Product Range: PDTB113Z Series
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Collector Emitter Saturation Voltage Vce(on): -300mV
- Continuous Collector Current Ic Max: -500mA
- DC Collector Current: -500mA
- DC Current Gain hFE: 70hFE
- Hfe Min: 70
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +150°C
- Power Dissipation Pd: 250mW
- Resistance R1: 1kohm
- Resistance R2: 10kohm
- Termination Type: Surface Mount Device
- Transistor Case Style: SOT-23
- Transistor Polarity: PNP
