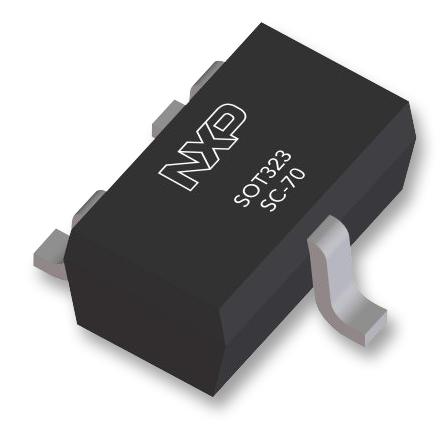

PDTC114TU,115 TRANSISTOR, DIGITAL, SOT-323, REEL NEXPERIA

NEXPERIASKU:PDTC114TU,115 Bestelcode:2439574

Prijs:
Actie prijs€0,04

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Uitverkocht

Documenten en downloads

Omschrijving

NEXPERIA - PDTC114TU,115 - Bipolar Pre-Biased / Digital Transistor, Single NPN, 50 V, 100 mA, 10 kohm

  • Digital Transistor Polarity: Single NPN
  • Collector Emitter Voltage V(br)ceo: 50V
  • Continuous Collector Current Ic: 100mA
  • Base Input Resistor R1: 10kohm
  • Base-Emitter Resistor R2: -
  • Resistor Ratio, R1 / R2: -
  • RF Transistor Case: SOT-323
  • No. of Pins: 3 Pin
  • Product Range: PDTC114T Series
  • Automotive Qualification Standard: -
  • MSL: MSL 1 - Unlimited
  • SVHC: No SVHC (15-Jan-2018)
  • Collector Emitter Saturation Voltage Vce(on): 150mV
  • Continuous Collector Current Ic Max: 100mA
  • Current Ic Continuous a Max: 100mA
  • Current Ic hFE: 1mA
  • DC Collector Current: 100mA
  • DC Current Gain hFE: 200hFE
  • Full Power Rating Temperature: 25°C
  • Hfe Min: 200
  • No. of Pins: 3Pins
  • Operating Temperature Max: 150°C
  • Operating Temperature Min: -65°C
  • Operating Temperature Range: -65°C to +150°C
  • Power Dissipation Pd: 200mW
  • Power Dissipation Ptot Max: 200mW
  • Resistance R1: 10kohm
  • Transistor Case Style: SOT-323
  • Transistor Polarity: NPN
  • Transistor Type: Bias Resistor (BRT)
  • Voltage Vcbo: 50V
