Omschrijving

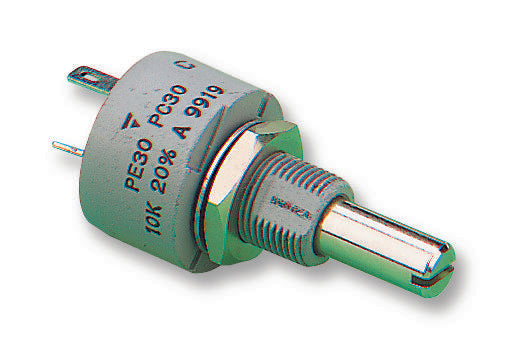

VISHAY - PE30L0FG223KAB - Rotary Potentiometer, Cermet, 22 kohm, 1 Turns, Linear, 3 W, ± 10%, PE30
- Track Resistance: 22kohm
- No. of Turns: 1Turns
- Track Taper: Linear
- Power Rating: 3W
- Resistance Tolerance: ± 10%
- Product Range: PE30 Series
- Potentiometer Mounting: Bushing
- Shaft Diameter: 6mm
- No. of Gangs: 1
- Adjustment Type: Rotary
- Shaft Length: 16mm
- Body Diameter: 19.7mm
- Contact Resistance Variation +: 3%
- Contact Resistance Variation -: 3%
- Electrical Angular Rotation Tolerance +: 10°
- Electrical Angular Rotation Tolerance -: 10°
- End Resistance: 1ohm
- External Length / Height: 11.5mm
- Insulation Resistance: 10000000Mohm
- Mechanical Angular Rotation Tolerance +: 5°
- Mechanical Angular Rotation Tolerance -: 5°
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +125°C
- Proof Voltage: 2500V
- Resistor Element Material: Cermet
- Rotation Electrical Angle: 270°
- Rotation Mechanical Angle: 300°
- Temperature Coefficient: ± 100ppm/°C
- Voltage Rating: 300V
