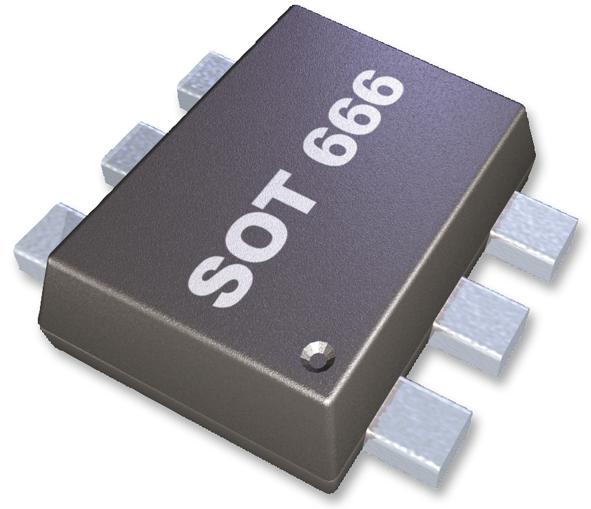

PESD5V0L5UV,115 Diode, TVs, Sot-666 NEXPERIA

NEXPERIASKU:PESD5V0L5UV,115 Bestelcode:8737630

Prijs:
Actie prijs€0,88

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (6075 units)

Documenten en downloads

Omschrijving

NEXPERIA - PESD5V0L5UV,115 - ESD Protection Device, TVS, 6.8 V, SOT-666, 6 Pins, PESD5

  • Clamping Voltage Vc Max: 6.8V
  • Diode Case Style: SOT-666
  • No. of Pins: 6Pins
  • Operating Voltage: -
  • Power Dissipation Pd: -
  • Product Range: PESD5 Series
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (27-Jun-2018)
  • Breakdown Voltage: 6.8V
  • Breakdown Voltage Max: 7.2V
  • Breakdown Voltage Min: 6.4V
  • Breakdown Voltage Range: 6.4V to 7.2V
  • Breakover Voltage Min: 6.4V
  • Capacitance Cd @ Vr Max: 19pF
  • Capacitance Cd @ Vr Typ: 16pF
  • Clamping Voltage @ 8/20µs Max: 12V
  • Diode Type: Unidirectional TVS
  • Operating Temperature Max: 150°C
  • Operating Temperature Min: -65°C
  • Operating Temperature Range: -65°C to +150°C
  • Peak Pulse Current Ippm: 2.5A
  • Peak Pulse Power Dissipation: 25W
  • Pin Configuration: 4
  • Reel Quantity: 5
  • Reverse Stand-Off Voltage Vrwm: 5V
  • SMD Marking: E2
  • Stand-off Voltage: 5V
  • TVS Polarity: Unidirectional
