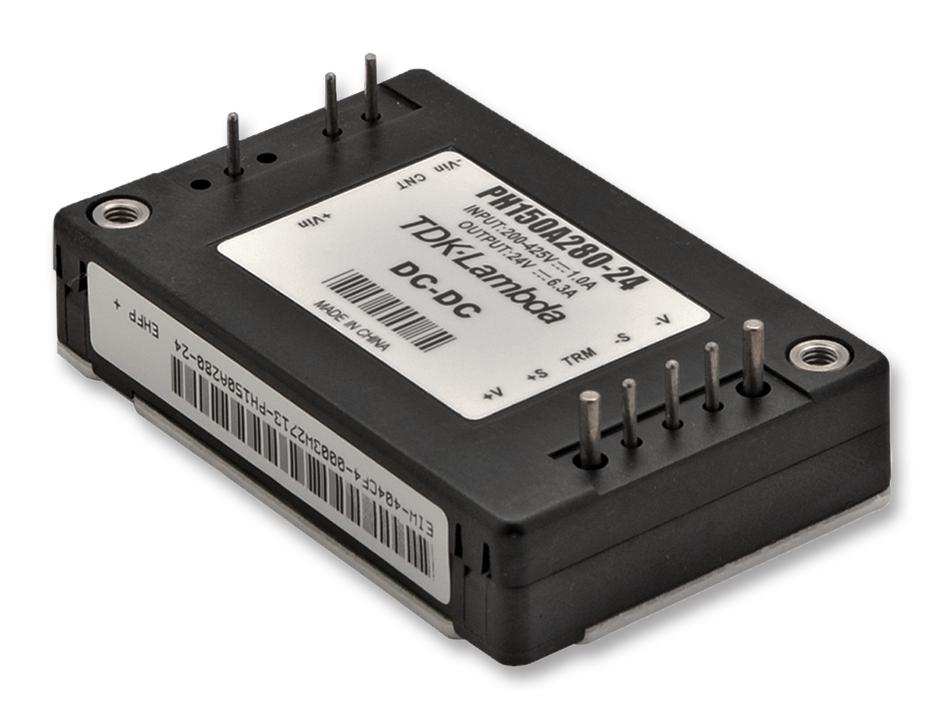

TDK-LAMBDA - PH-150A-280-24 - Isolated Through Hole DC/DC Converter, ITE, 2:1, 151.2 W, 1 Output, 24 V, 6.3 A
- No. of Outputs: 1 Output
- Output Power Max: 151.2W
- Output Voltage - Output 1: 24V
- Output Current - Output 1: 6.3A
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: PH-A280 Series
- Input Voltage DC Min: 200V
- Input Voltage DC Max: 425V
- DC / DC Converter Output Type: Fixed, Adjustable
- DC / DC Converter Type: Quarter Brick
- DC / DC Converter Mounting: Through Hole
- Width: 37.2mm
- Height: 12.7mm
- Depth: 58.3mm
- SVHC: No SVHC (15-Jan-2018)
- Approvals & Standards: CSA, UL
