Omschrijving

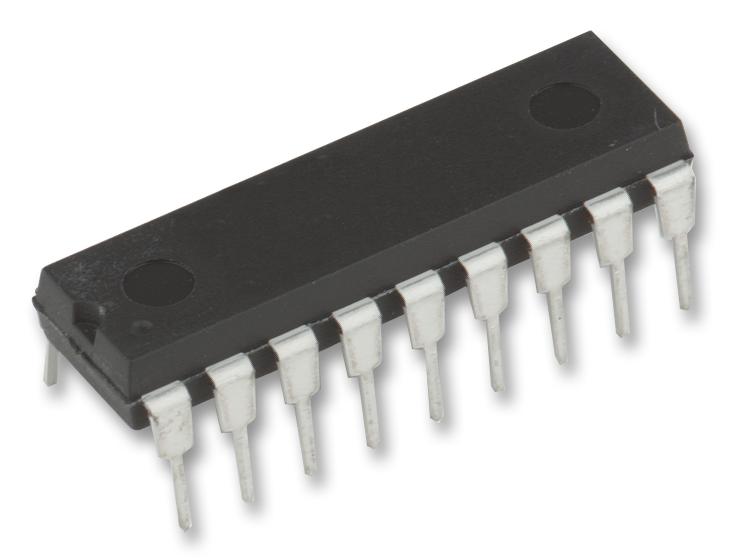

MICROCHIP - PIC16C715-20/P - 8 Bit MCU, One Time Programmable, PIC16 Family PIC16C7x Series Microcontrollers, 20 MHz, 3.5 KB
- Product Range: PIC16 Family PIC16C7x Series Microcontrollers
- CPU Speed: 20MHz
- Program Memory Size: 3.5KB
- RAM Memory Size: 128Byte
- No. of Pins: 18Pins
- MCU Case Style: DIP
- No. of I/O's: 13I/O's
- Embedded Interface Type: -
- Supply Voltage Min: 2.5V
- Supply Voltage Max: 5.5V
- MCU Family: PIC16
- MCU Series: PIC16C7x
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: Yes
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- Controller Family/Series: PIC16C
- IC Generic Number: 16C715
- IC Temperature Range: Commercial
- Logic Function Number: 16C715
- MPU Core Size: 8bit
- Memory Type: EPROM
- Microprocessor/Controller Features: In-system Programming, Brown-out Protection, Watchdog
- No. of ADC Inputs: 4
- No. of Bits: 8bit
- No. of Timers: 1
- OTP Memory Size: 28KB
- Operating Temperature Max: 70°C
- Operating Temperature Min: 0°C
- Operating Temperature Range: 0°C to +70°C
- Oscillator Type: External
- Peripherals: ADC, Timer
- Program Memory Size: 3.5KB
- Supply Voltage Range: 2.5V to 5.5V
