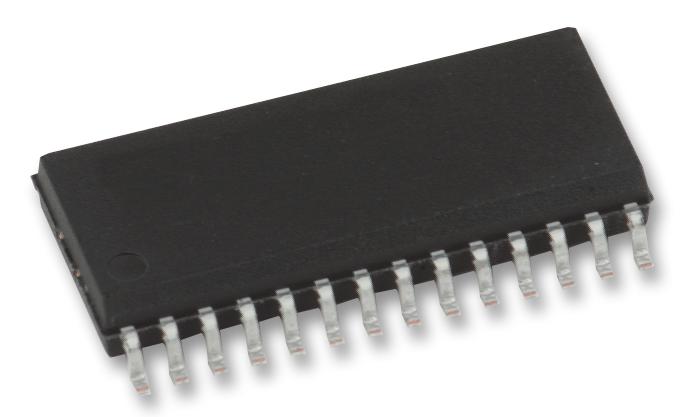

MICROCHIP - PIC16F76-I/SO - 8 Bit MCU, Flash, PIC16 Family PIC16F7XX Series Microcontrollers, 20 MHz, 14 KB, 368 Byte, 28 Pins
- Product Range: PIC16 Family PIC16F7XX Series Microcontrollers
- CPU Speed: 20MHz
- Program Memory Size: 14KB
- RAM Memory Size: 368Byte
- No. of Pins: 28Pins
- MCU Case Style: SOIC
- No. of I/O's: 22I/O's
- Embedded Interface Type: I2C, SPI, USART
- Supply Voltage Min: 4V
- Supply Voltage Max: 5.5V
- MCU Family: PIC16
- MCU Series: PIC16F7xx
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Controller Family/Series: PIC16F
- Flash Memory Size: 14KB
- IC Generic Number: 16F76
- IC Temperature Range: Industrial
- Logic Function Number: 16F76
- MPU Core Size: 8bit
- Memory Type: Flash
- Microprocessor/Controller Features: Two Capture, Compare, PWM, USART, Parallel Slave Port, Brown-out detection, Watchdog
- No. of ADC Inputs: 5
- No. of Bits: 8bit
- No. of PWM Channels: 2
- No. of Timers: 3
- Number of bits in ADC: 8
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- Oscillator Type: External
- Peripherals: ADC, PWM, Timer
