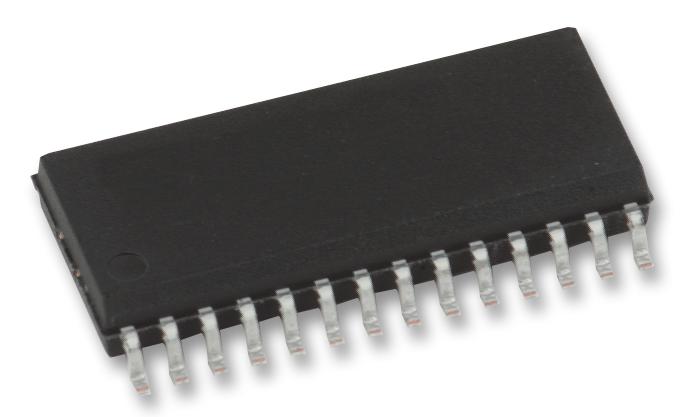

MICROCHIP - PIC18F2685-E/SO - 8 Bit MCU, Flash, PIC18 Family PIC18F26xx Series Microcontrollers, 40 MHz, 96 KB, 3.25 KB, 28 Pins
- Product Range: PIC18 Family PIC18F26xx Series Microcontrollers
- CPU Speed: 40MHz
- Program Memory Size: 96KB
- RAM Memory Size: 3.25KB
- No. of Pins: 28Pins
- MCU Case Style: SOIC
- No. of I/O's: 25I/O's
- Embedded Interface Type: I2C, SPI, USART
- Supply Voltage Min: 2V
- Supply Voltage Max: 5.5V
- MCU Family: PIC18
- MCU Series: PIC18F26xx
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: Yes
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Controller Family/Series: PIC18F2xxx
- EEPROM Memory Size: 1KB
- Flash Memory Size: 96KB
- Logic Function Number: 18F2685
- MPU Core Size: 8bit
- No. of ADC Inputs: 8
- No. of PWM Channels: 1
- No. of Timers: 4
- Number of bits in ADC: 10
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +125°C
- Oscillator Type: External, Internal
- Peripherals: ADC, Comparator
- Program Memory Size: 96KB
- Supply Voltage Range: 2V to 5.5V
- Termination Type: Surface Mount Device
