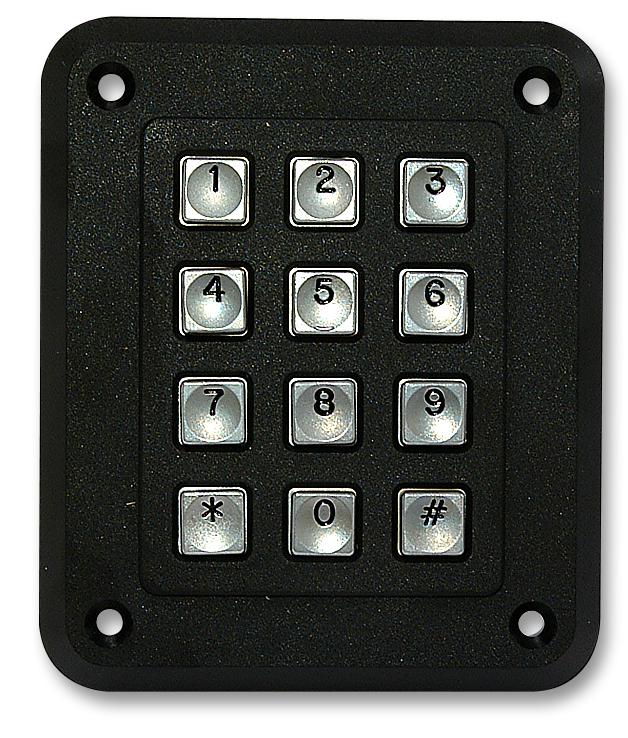

PLX12T201 Keypad, 12WAY, Tel Keys Storm Interface

STORM INTERFACESKU:PLX12T201 Bestelcode:9810226

Prijs:
Actie prijs€117,38

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (16 units)

Documenten en downloads

Omschrijving

STORM INTERFACE - PLX12T201 - Keypad, STORM 1000PLX, 3 x 4, Matrix, Polymer, 50 mA, 24 V

  • Product Range: STORM 1000PLX Series
  • Keypad Array: 3 x 4
  • Keypad Output: Matrix
  • Housing Material: Polymer
  • Contact Current Max: 50mA
  • Contact Voltage DC Nom: 24V
  • No. of Keys: 12
  • Panel Cutout Width: 99.5mm
  • Panel Cutout Height: 118.5mm
  • SVHC: No SVHC (27-Jun-2018)
  • Breakdown Voltage Vbr: 500V
  • Colour: Black
  • Contact Current DC Max: 50mA
  • Contact Current Rating: 50mA
  • Contact Resistance: 100mohm
  • Contact Voltage DC Max: 24V
  • Height: 118.5mm
  • IP / NEMA Rating: IP65
  • Insulation Resistance: 50Mohm
  • Material: Super High Impact Polymer
  • No. of Mechanical Operations: 4000000
  • Operating Force: 1.8N
  • Operating Temperature Max: 100°C
  • Operating Temperature Min: -40°C
  • Operating Time: 5ms
