Omschrijving

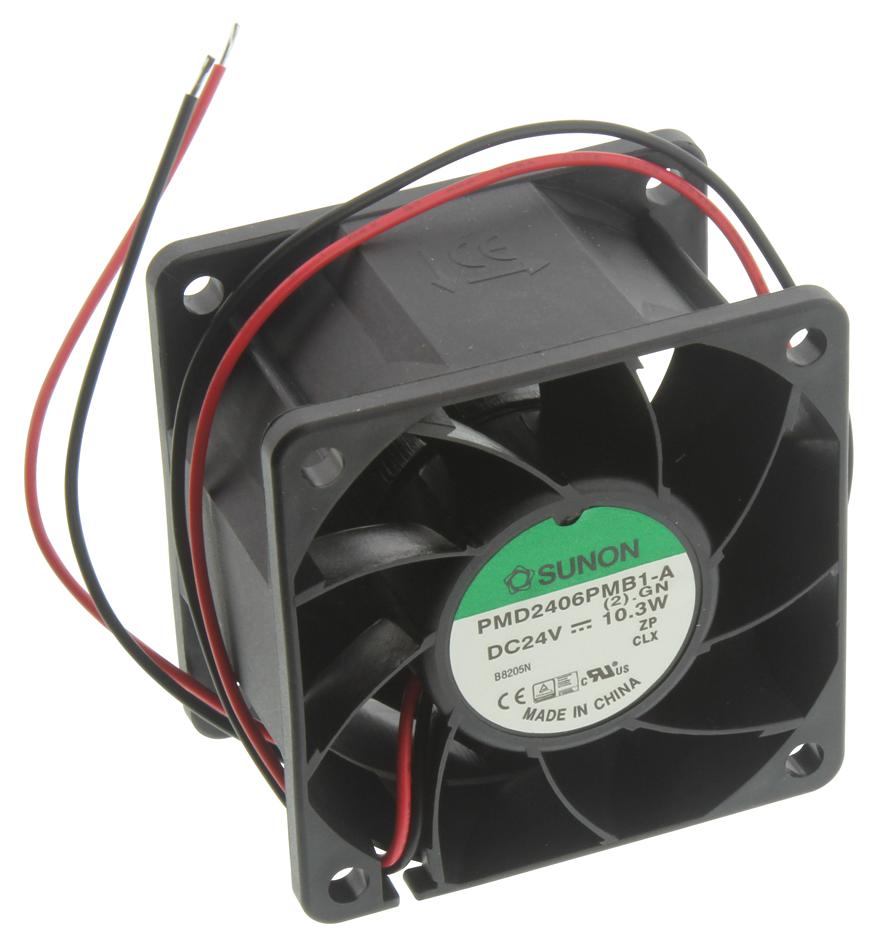

SUNON - PMD2406PMB1-A.(2).GN - DC Axial Fan, 24 V, Square, 60 mm, 38 mm, Ball Bearing, 56.5 CFM
- Supply Voltage: 24V
- Current Type: DC
- Fan Frame Size: 60mm
- External Depth: 38mm
- Noise Rating: 56dBA
- Flow Rate - Imperial: 56.5cu.ft/min
- Flow Rate - Metric: 1.58m³/min
- Bearing Type: Ball
- Power Connection Type: 2 Lead Wires
- Current Rating: 430mA
- Product Range: PMD Series
- Power Rating: -
- IP Rating: -
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: CE, TUV, UL
- Case Material: PBT Plastic
- Current Consumption: 0.43A
- External Height: 60mm
- External Width: 60mm
- Frame Dimensions: 60mm x 60mm x 38mm
- Lead Length: 300mm
- Power Consumption: 10.3W
- Speed Range Max: 8000rpm
