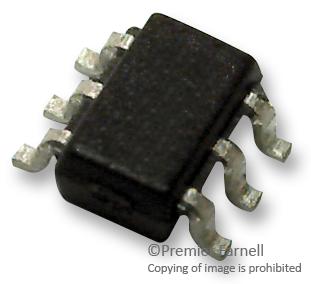

PMGD280UN,115 MOSFET, N Ch, Trench DL, 20V, SOT363 NEXPERIA

NEXPERIASKU:PMGD280UN,115 Bestelcode:1758098

Prijs:
Actie prijs€0,60

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (7620 units)

Documenten en downloads

Omschrijving

NEXPERIA - PMGD280UN,115 - Dual MOSFET, N Channel, 20 V, 200 mA, 0.28 ohm, SOT-363, Surface Mount

  • Transistor Polarity: Dual N Channel
  • Continuous Drain Current Id: 200mA
  • Drain Source Voltage Vds: 20V
  • On Resistance Rds(on): 0.28ohm
  • Rds(on) Test Voltage Vgs: 4.5V
  • Threshold Voltage Vgs: 700mV
  • Power Dissipation Pd: 400mW
  • Transistor Case Style: SOT-363
  • No. of Pins: 6Pins
  • Operating Temperature Max: 150°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: MSL 1 - Unlimited
  • SVHC: No SVHC (15-Jan-2018)
  • Continuous Drain Current Id, N Channel: 870mA
  • Current Id Max: 870mA
  • Drain Source Voltage Vds, N Channel: 20V
  • Module Configuration: Dual
  • On Resistance Rds(on), N Channel: 0.28ohm
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +150°C
  • Termination Type: Surface Mount Device
  • Transistor Type: Enhancement
  • Voltage Vds Typ: 20V
  • Voltage Vgs Max: 8V
  • Voltage Vgs Rds on Measurement: 4.5V
