PRFDA1-16F-BB0BW Rocker Switch Te Connectivity

TE CONNECTIVITYSKU:PRFDA1-16F-BB0BW Bestelcode:7692986

Prijs:
Actie prijs€6,23

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (357 units)

Documenten en downloads

Omschrijving

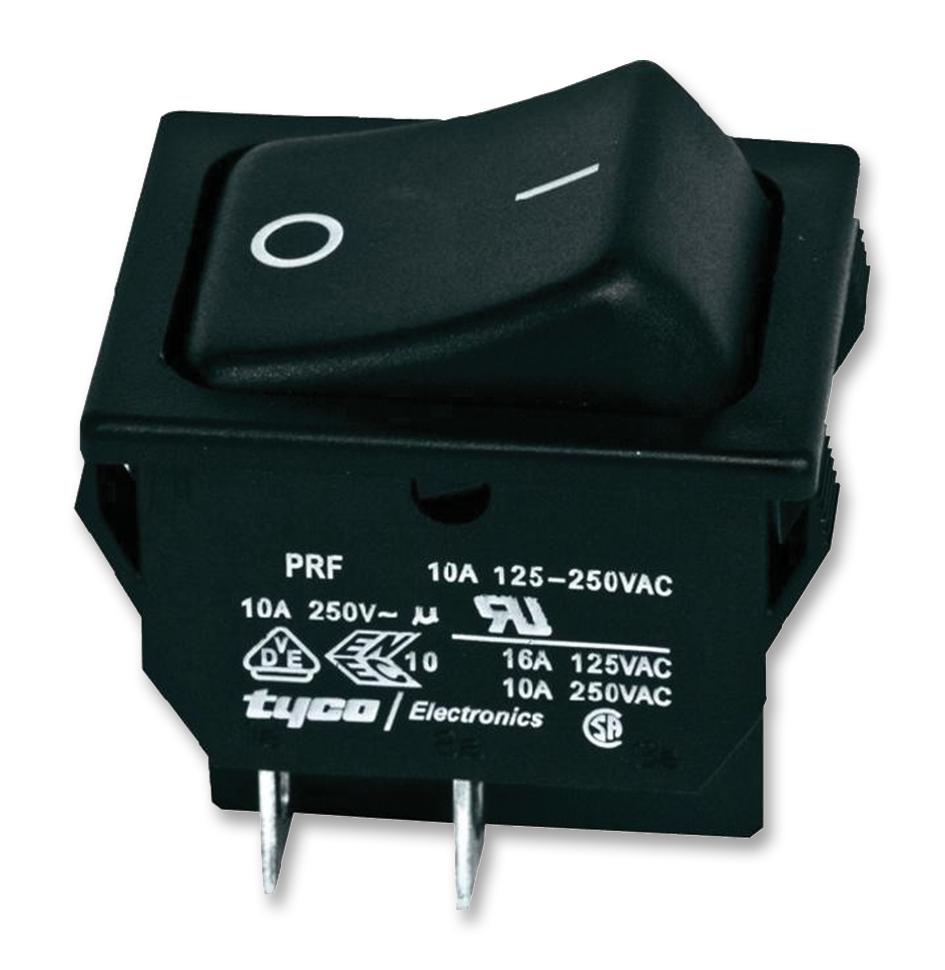

TE CONNECTIVITY - PRFDA1-16F-BB0BW - Rocker Switch, Off-On, DPST, Non Illuminated, Panel Mount, Black, PRF

  • Illumination: Non Illuminated
  • Contact Configuration: DPST
  • Switch Operation: Off-On
  • Actuator / Cap Colour: Black
  • Switch Mounting: Panel
  • Contact Current Max: 16A
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Nom: -
  • Product Range: PRF Series
  • Approval Bodies: CSA, ENEC, UL, VDE
  • Bezel Depth: 25mm
  • Bezel Width: 31.5mm
  • Colour: Black
  • Contact Current @ Contact Voltage AC Min: 10A
  • Contact Current AC Max: 16A
  • Contact Resistance: 50mohm
  • Contact Voltage AC Max: 250V
  • External Length / Height: 29.5mm
  • Inrush Current: 80A
  • Insulation Resistance: 100Mohm
  • Material: Nylon 6/6, UL 94V-2
  • No. of Electrical Operations: 10000
  • No. of Mechanical Operations: 100000
  • Panel Cutout Depth: 22.2mm
  • Panel Cutout Size: 22.2 x 30.2 mm
  • Panel Cutout Width: 30.2mm
  • Panel Cutout length: 22.2mm
  • Terminal Material: Silver plated copper alloy
