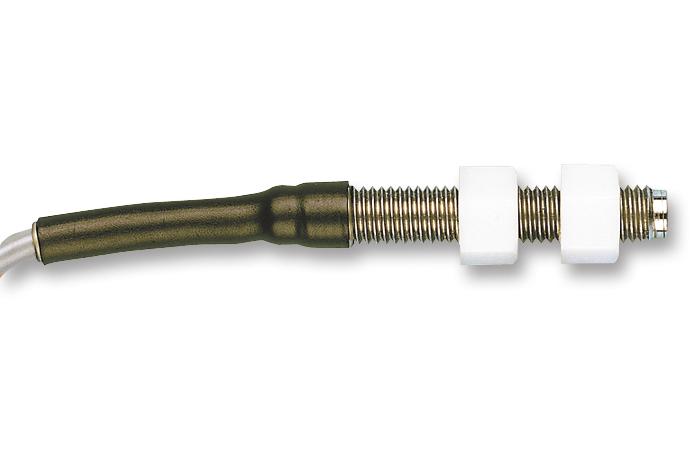

TE CONNECTIVITY - PS-801 - Reed Switch, PS8 Series, M10, 12 mm, SPST-NO, 15 W, 250 Vac, 1 A
- Sensing Range Max: 12mm
- Sensor Mounting: -
- Operating Temperature Min: 0°C
- Operating Temperature Max: 120°C
- Supply Current: 1A
- Product Range: PS8 Series
- Contact Configuration: SPST-NO
- Contact Voltage AC Max: 250VAC
- External Length / Height: 65mm
- Lead Length: 1500mm
- Material: Stainless Steel
- Operating Distance: 12mm
- Operating Temperature Range: 0°C to +120°C
- Sensing Range: 0mm to 12mm
- Sensor Input: Magnetic
- Supply Voltage AC Max: 250V
- Switch Operation: Off-On
- Switching Power Max: 15W
- Switching Voltage: 250VAC
- Termination Type: Wire Leaded
- Thread Size: M10
