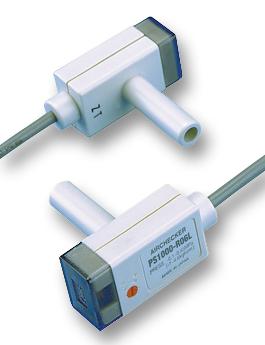

SMC - PS1100-R06L - Switch, Vacuum, Air Checker, Electronic, PS1000 Series, -0.1 to 0.45MPa, 6mm
- Connection Size: 6mm
- Operating Pressure Max: 400kPa
- Operating Temperature Min: 0°C
- Operating Temperature Max: 60°C
- Product Range: -
- External Depth: 30mm
- External Length / Height: 30mm
- External Width: 13mm
- Load Current DC Max: 40mA
- Load Current DC Min: 5mA
- Load Voltage DC Max: 24VDC
- Load Voltage DC Min: 12VDC
- Operating Pressure Min: -0.1MPa
- Operating Pressure Range: -100kPa to 400kPa
- Operating Temperature Range: 0°C to +60°C
- Pressure Max: 1MPa
- Setting Pressure Max: 0.4MPa
- Setting Pressure Min: -0.1MPa
- Temperature Max: 60°C
- Temperature Min: 0°C
