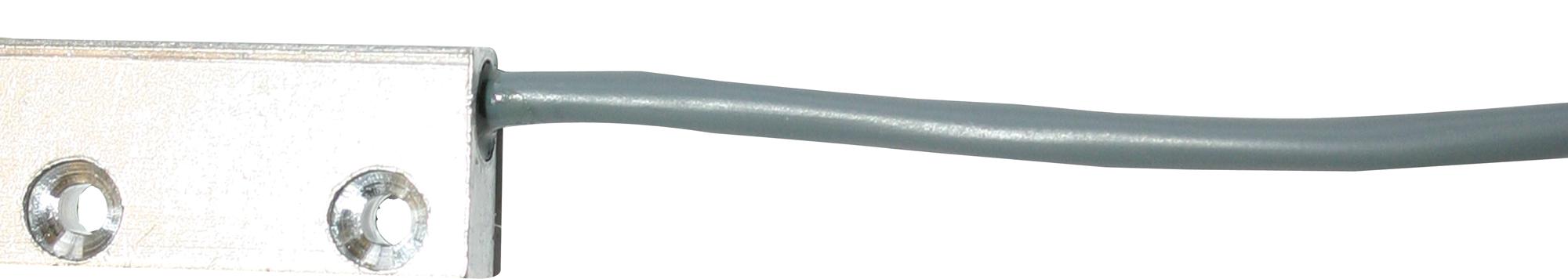

PS2011 Position Sensor Te Connectivity

TE CONNECTIVITYSKU:PS2011 Bestelcode:1006785

Prijs:
Actie prijs€34,98

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (548 units)

Documenten en downloads

Omschrijving

TE CONNECTIVITY - PS2011 - Reed Switch, PS2 Series, Flange Mount, 10 mm, SPST-NO, 15 W, 250 Vac, 1 A

  • Sensing Range Max: 10mm
  • Sensor Mounting: Cable
  • Operating Temperature Min: 0°C
  • Operating Temperature Max: 70°C
  • Supply Current: 1A
  • Product Range: -
  • Approval Bodies: UL
  • Contact Configuration: SPST-NO
  • External Depth: 6.4mm
  • External Length / Height: 19.5mm
  • External Width: 28.5mm
  • Fixing Centres: 21mm
  • Lead Length: 500mm
  • Load Voltage DC Max: 100VDC
  • Material: Nylon 6.6
  • Operating Temperature Range: 0°C to +70°C
  • RMS Load Voltage Max: 250VAC
  • Resistive Current Rating: 1A
  • Sensing Distance Max: 10mm
  • Sensor Input: Magnetic
  • Supply Voltage AC Max: 250V
  • Switch Operation: Off-On
  • Switching Power Max: 15W
  • Switching Voltage: 250VAC
  • Termination Type: Wire Leaded
