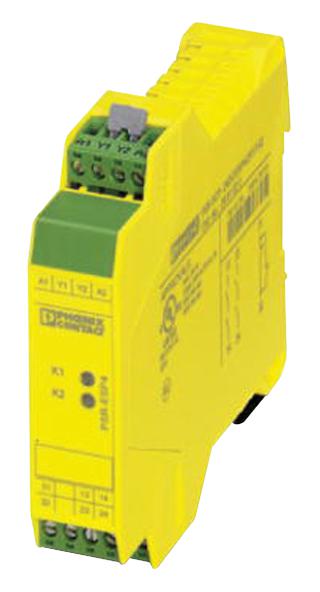

PSR-SCP-24DC/ESP4/2x1/1x2 Relay, Safety, 2NO, 1NC, 250V, 6a Phoenix Contact

PHOENIX CONTACTSKU:PSR-SCP-24DC/ESP4/2X1/1X2 Bestelcode:2064578

Prijs:
Actie prijs€291,00

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (12 units)

Documenten en downloads

Omschrijving

PHOENIX CONTACT - PSR-SCP-24DC/ESP4/2X1/1X2 - Safety Relay, 24 VDC, DPST-NO, SPST-NC, PSR, DIN Rail, 6 A, Screw

  • Coil Voltage: 24VDC
  • Contact Configuration: DPST-NO, SPST-NC
  • Product Range: PSR Series
  • Relay Mounting: DIN Rail
  • Contact Current: 6A
  • Relay Terminals: Screw
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Nom: 250V
  • Contact Material: Silver Tin Oxide
  • IP Rating: IP20, IP54
  • SVHC: No SVHC (15-Jan-2018)
  • Approvals / Standards: EN 61508, ISO 13849
  • Coil Voltage VDC Nom: 24V
  • Contact Current Max: 6A
  • External Depth: 114.5mm
  • External Height: 99mm
  • External Width: 22.5mm
  • Performance Level: PL e
  • Safety Category: Level 4
  • Safety Integrity Level: SIL CL3
