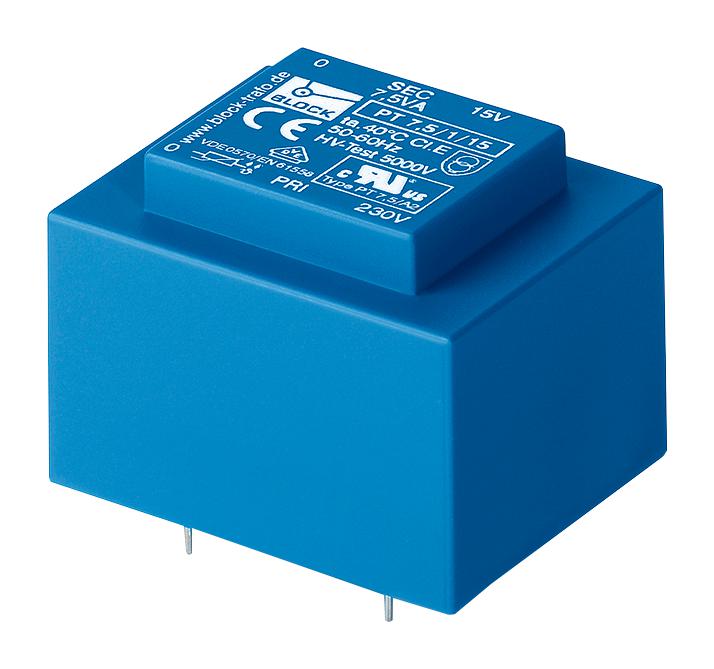

BLOCK - PT 7.5/2/15 - PCB Transformer, EI 48 x 16.8, Encapsulated Safety Isolating, 230V, 2 x 15V, 7.5 VA, 50Hz / 60Hz
- Power Rating: 7.5VA
- Secondary Voltages: 2 x 15V
- Current Rating: 250mA
- Isolation Transformer Primary Voltages: 1 x 230V
- Plug Type: -
- Product Range: PT Series
- SVHC: No SVHC (12-Jan-2017)
- AC Power: 7.5VA
- External Depth: 36mm
- External Length / Height: 51mm
- External Width: 43mm
- Hole Spacing - Length: 27.5mm
- Input Voltage: 230V
- Lead Spacing: 5mm
- Output 2 Voltage Max: 15V
- Output Voltage: 15V
- Pin Diameter: 0.8mm
- Pin Length: 7mm
- Pitch Spacing: 25mm
- Primary Voltages: 1 x 230V
- Secondary Power: 3.75VA
- Single Primary Voltage: 230
- Supply Frequency Max: 60Hz
- Supply Frequency Min: 50Hz
- Test Voltage: 5kV
- Transformer Type: Encapsulated
- Weight: 280g
