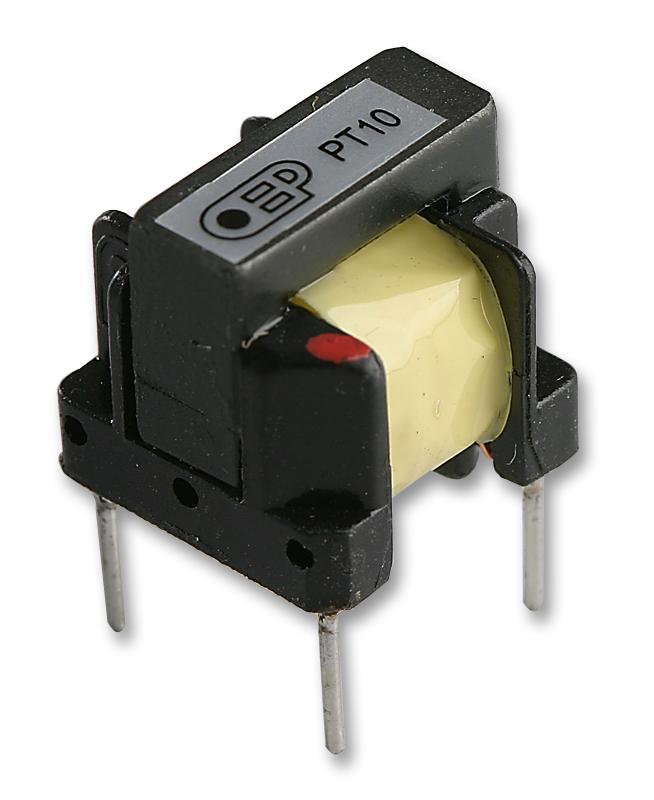

OEP (OXFORD ELECTRICAL PRODUCTS) - PT10 - Pulse Transformer, Open, 2:1, 115 µH, 5.1 ohm, 200 Vµs, 2.8 kV, PT Series
- TRANSFORMER, PULSE, 2: 1
- Turns Ratio: 2
- Isolation Voltage: 2.8kV
- Product Range: OEP - PT Series
- Inductance: 115µH
- DC Resistance: 5.1ohm
- ET Constant: 200Vµs
- SVHC: No SVHC (15-Jan-2019)
- Capacitance: 19pF
- External Depth: 13mm
- External Length / Height: 15mm
- External Width: 13mm
- Leakage Inductance: 115µH
- Lower Frequency Bandwidth: 3kHz
- Output Pulse Current Max: 200mA
- Primary Inductance: 12mH
- Primary Resistance: 5.1ohm
- Proof Voltage PK: 2.8kV
- Secondary Resistance: 2.6ohm
- Transformer Type: Pulse
- Upper Frequency Bandwidth: 1MHz
- Winding Configuration: 2
- Winding Resistance Max: 2.6ohm
