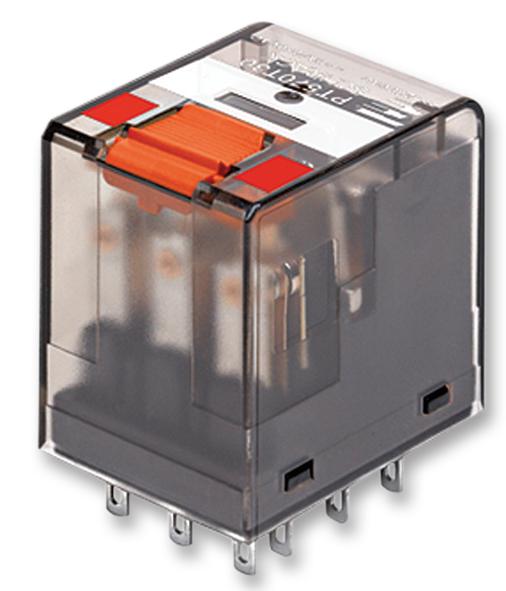

PT270524 Relay, DPDT, 240Vac, 12A SCHRACK - Te Connectivity

SCHRACK - TE CONNECTIVITYSKU:PT270524 Bestelcode:1175057

Prijs:
Actie prijs€14,93

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (8 units)

Documenten en downloads

Omschrijving

SCHRACK - TE CONNECTIVITY - 4-1419111-8 - General Purpose Relay, PT Series, Power, Non Latching, DPDT, 24 VAC, 12 A

  • Contact Configuration: DPDT
  • Coil Voltage: 24VAC
  • Contact Current: 12A
  • Product Range: PT Series
  • Relay Mounting: Socket
  • Coil Type: Non Latching
  • Contact Voltage VAC: 240VAC
  • Relay Terminals: Quick Connect
  • Contact Voltage VDC: -
  • Contact Material: Silver
  • Coil Resistance: 192ohm
  • SVHC: No SVHC (15-Jan-2018)
  • AC Coil Power: 1VA
  • Approval Bodies: LLOYDS, VDE
  • Approval Category: UL Recognised
  • Approvals & Standards: UL, VDE
  • Coil Voltage VAC Nom: 24V
  • Contact Current AC Max: 12A
  • Contact Current DC Max: 12A
  • Contact Current Max: 12A
  • Contact Voltage AC Max: 230V
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Max: 230V
  • Contact Voltage DC Nom: 24V
  • DC Coil Power: 750mW
  • Dielectric Voltage Coil to Contact: 2500VAC
  • Dielectric Voltage Contact to Contact: 1200VAC
  • External Depth: 29mm
  • External Height: 28mm
  • External Length / Height: 28mm
  • External Width: 22.5mm
  • Must Actuate Voltage: 19.2V
  • Must Release Voltage: 7.2V
  • Nom Operating Power: 1VA
  • Operating Temperature Max: 70°C
  • Operating Time: 15ms
