Omschrijving

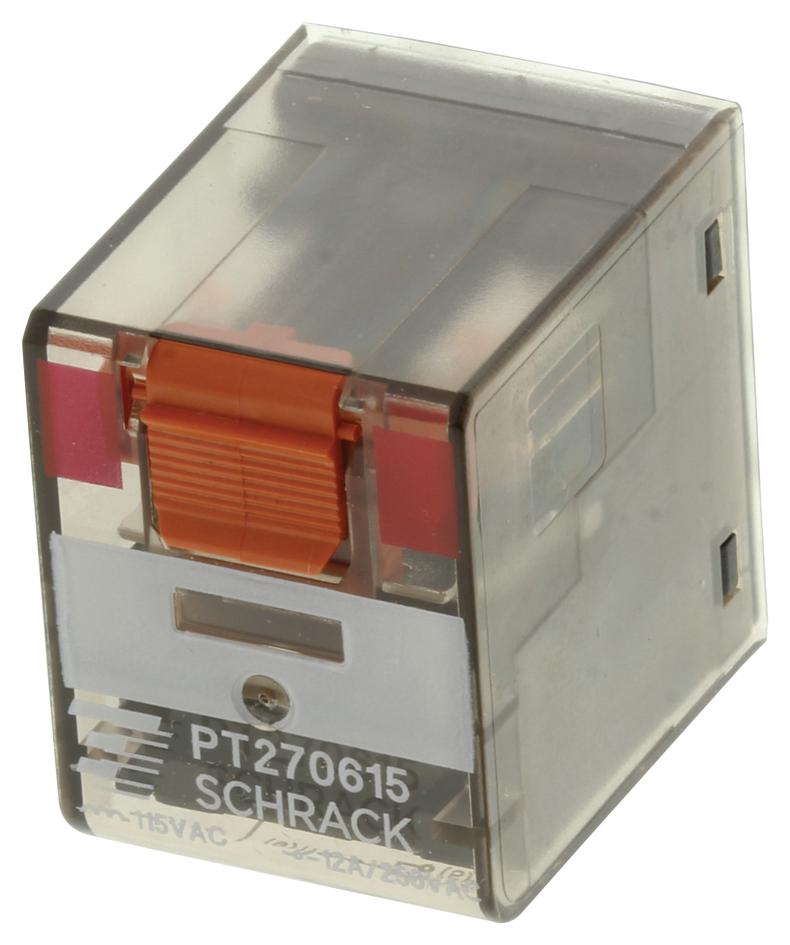

SCHRACK - TE CONNECTIVITY - 5-1419111-0 - Power Relay, DPDT, 115 VAC, 12 A, PT, Socket, Non Latching
- Contact Configuration: DPDT
- Coil Voltage: 115VAC
- Contact Current: 12A
- Product Range: PT Series
- Relay Mounting: Socket
- Coil Type: Non Latching
- Contact Voltage VAC: 240VAC
- Relay Terminals: Quick Connect
- Contact Voltage VDC: -
- Contact Material: Silver
- Coil Resistance: 4.84kohm
- SVHC: No SVHC (15-Jan-2018)
- AC Coil Power: 1VA
- Approval Category: VDE
- Approvals & Standards: UL, VDE
- Coil Voltage VAC Nom: 115V
- Contact Current AC Max: 12A
- Contact Current DC Max: 12A
- Contact Current Max: 12A
- Contact Voltage AC Max: 230V
- Contact Voltage AC Nom: 240V
- Contact Voltage DC Max: 230V
- DC Coil Power: 750mW
- External Depth: 29mm
- External Height: 28mm
- External Length / Height: 28mm
- External Width: 22.5mm
- Nom Operating Power: 1VA
- Operating Temperature Max: 70°C
- Operating Temperature Min: -45°C
- Operating Time: 15ms
- Relay Type: Power - General Purpose
- Release Time: 10ms
