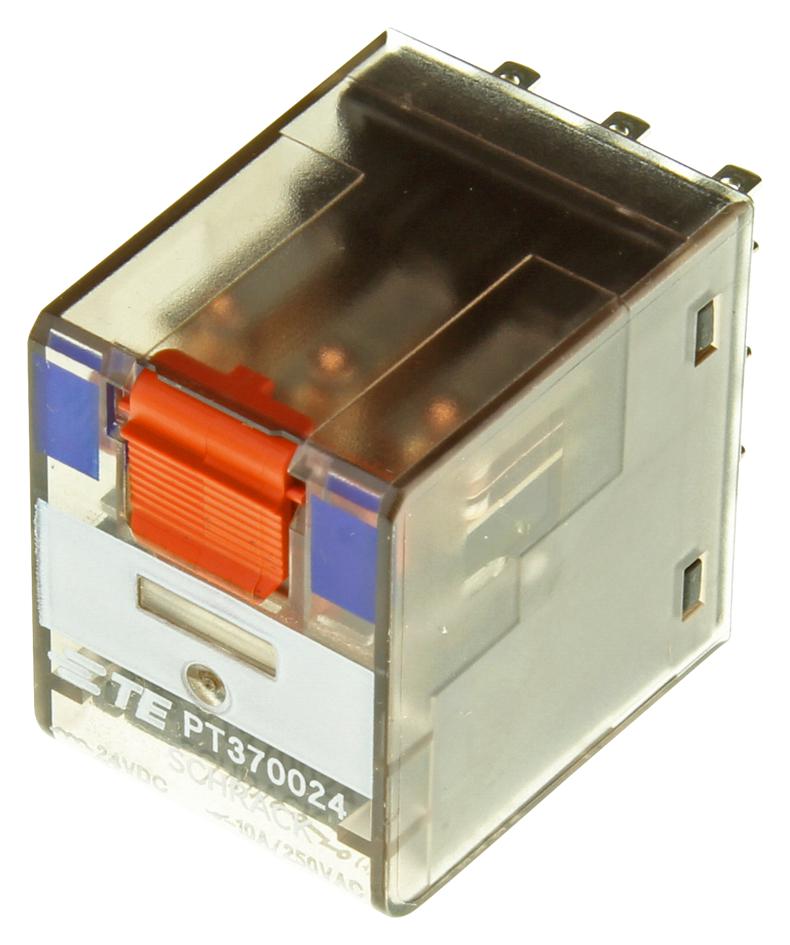

PT370024 Relay, 3PDT, 240Vac, 10A SCHRACK - Te Connectivity

SCHRACK - TE CONNECTIVITYSKU:PT370024 Bestelcode:3072745

Prijs:
Actie prijs€16,06

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (528 units)

Documenten en downloads

Omschrijving

SCHRACK - TE CONNECTIVITY - PT370024 - Power Relay, 3PDT, 24 VDC, 10 A, PT, Socket, Non Latching

  • Contact Configuration: 3PDT
  • Coil Voltage: 24VDC
  • Contact Current: 10A
  • Product Range: PT Series
  • Relay Mounting: Socket
  • Coil Type: Non Latching
  • Contact Voltage VAC: 240VAC
  • Relay Terminals: Quick Connect
  • Contact Voltage VDC: -
  • Contact Material: Silver
  • Coil Resistance: 777ohm
  • SVHC: No SVHC (15-Jan-2018)
  • AC Coil Power: 1VA
  • Approval Category: VDE
  • Approvals & Standards: UL, VDE
  • Coil Voltage VDC Nom: 24V
  • Contact Current AC Max: 10A
  • Contact Current DC Max: 12A
  • Contact Current Max: 10A
  • Contact Voltage AC Max: 230V
  • Contact Voltage AC Nom: 240V
  • Contact Voltage DC Max: 230V
  • DC Coil Power: 750mW
  • External Depth: 29mm
  • External Height: 28mm
  • External Length / Height: 28mm
  • External Width: 22.5mm
  • Nom Operating Power: 741mW
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -40°C
  • Operating Time: 15ms
  • Relay Type: Power - General Purpose
  • Release Time: 10ms
