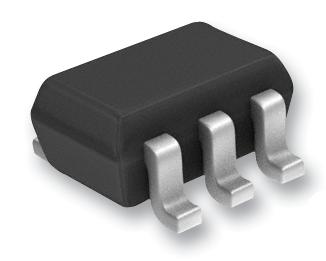

PUMH1,115 TRANSISTOR, DIGITAL, DUAL, SOT-363, REEL NEXPERIA

NEXPERIASKU:PUMH1,115 Bestelcode:2439785

Prijs:
Actie prijs€0,05

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Uitverkocht

Documenten en downloads

Omschrijving

NEXPERIA - PUMH1,115 - Bipolar Pre-Biased / Digital Transistor, BRT, Dual NPN, 50 V, 100 mA, 22 kohm, 22 kohm

  • Digital Transistor Polarity: Dual NPN
  • Collector Emitter Voltage V(br)ceo: 50V
  • Continuous Collector Current Ic: 100mA
  • Base Input Resistor R1: 22kohm
  • Base-Emitter Resistor R2: 22kohm
  • Resistor Ratio, R1 / R2: -
  • RF Transistor Case: SOT-363
  • No. of Pins: 6 Pin
  • Product Range: PUMH1 Series
  • Automotive Qualification Standard: -
  • MSL: MSL 1 - Unlimited
  • SVHC: No SVHC (27-Jun-2018)
  • Collector Emitter Saturation Voltage Vce(on): 150mV
  • Current Ic hFE: 5mA
  • DC Collector Current: 100mA
  • DC Current Gain hFE: 60hFE
  • Full Power Rating Temperature: 25°C
  • Hfe Min: 60
  • Module Configuration: Dual
  • No. of Pins: 6Pins
  • No. of Transistors: 2
  • Operating Temperature Max: 150°C
  • Operating Temperature Min: -65°C
  • Operating Temperature Range: -65°C to +150°C
  • Power Dissipation Pd: 200mW
  • Power Dissipation Ptot Max: 300mW
  • Resistance R1: 22kohm
  • Resistance R1 PNP: 22kohm
  • Resistance R2: 22kohm
  • Transistor Case Style: SOT-363
  • Transistor Polarity: NPN
  • Transistor Type: Bias Resistor (BRT)
  • Transition Frequency ft: 230MHz
