PUMH20,115 Transistor, Digital, Dual, Sot-363 NEXPERIA

NEXPERIASKU:PUMH20,115 Bestelcode:8738556

Prijs:
Actie prijs€0,23

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (2747 units)

Documenten en downloads

Omschrijving

NEXPERIA - PUMH20,115 - Bipolar Pre-Biased / Digital Transistor, BRT, Dual NPN, 50 V, 100 mA, 2.2 kohm, 2.2 kohm

  • Digital Transistor Polarity: Dual NPN
  • Collector Emitter Voltage V(br)ceo: 50V
  • Continuous Collector Current Ic: 100mA
  • Base Input Resistor R1: 2.2kohm
  • Base-Emitter Resistor R2: 2.2kohm
  • Resistor Ratio, R1 / R2: -

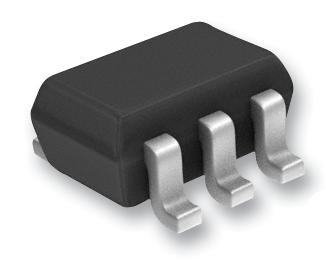

  • RF Transistor Case: SOT-363
  • No. of Pins: 6 Pin
  • Product Range: PUMH20 Series
  • Automotive Qualification Standard: -
  • MSL: MSL 1 - Unlimited
  • SVHC: No SVHC (27-Jun-2018)
  • Collector Emitter Saturation Voltage Vce(on): 150mV
  • Continuous Collector Current Ic Max: 100A
  • Current Ic Continuous a Max: 100A
  • Current Ic hFE: 20mA
  • DC Collector Current: 100mA
  • DC Current Gain hFE: 30hFE
  • Full Power Rating Temperature: 25°C
  • Hfe Min: 30
  • Module Configuration: Dual
  • No. of Pins: 6Pins
  • No. of Transistors: 2
  • Operating Temperature Max: 150°C
  • Operating Temperature Min: -65°C
  • Operating Temperature Range: -65°C to +150°C
  • Power Dissipation Pd: 200mW
  • Power Dissipation Ptot Max: 300mW
  • Resistance R1: 2.2kohm
  • Resistance R1 PNP: 2.2kohm
  • Resistance R2: 2.2kohm
  • Transistor Case Style: SOT-363
