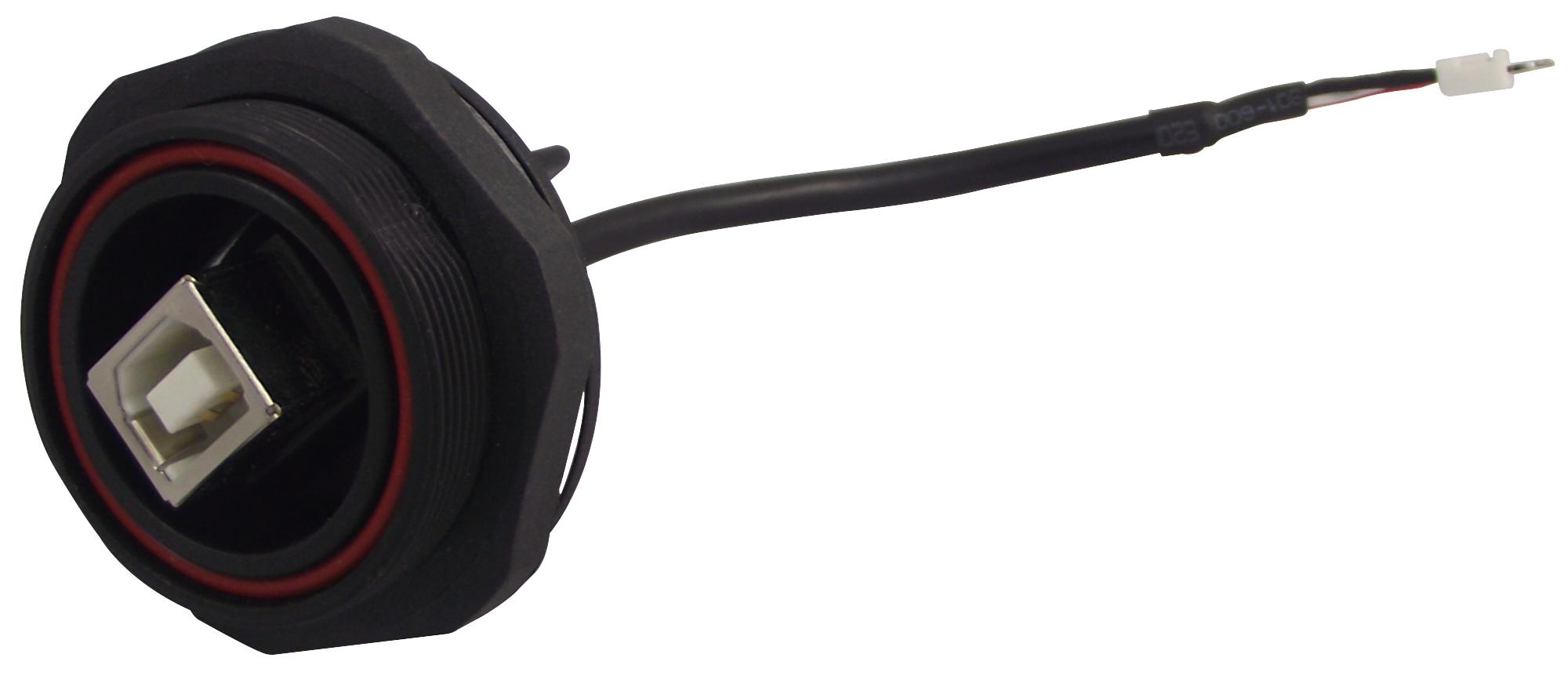

PX0849/B USB Type B, Receptacle, Panel Bulgin Limited

BULGIN LIMITEDSKU:PX0849/B Bestelcode:1629395

Prijs:
Actie prijs€46,03

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (50 units)

Documenten en downloads

Omschrijving

BULGIN LIMITED - PX0849/B - Computer Cable, Receptacle, USB 2.0B Socket, Wire to Board 5 Pos. Receptacle, 0.45ft, Black

  • Connector Type A: USB 2.0 B Socket
  • Connector Type B: Wire to Board 5 Position Receptacle
  • Cable Length - Imperial: 4.7"
  • Cable Length - Metric: 120mm
  • Jacket Colour: Black
  • Product Range: Standard Buccaneer Series
  • SVHC: No SVHC (27-Jun-2018)
  • Connector Mounting: Panel Mount
  • Connector Mounting Orientation: Panel
  • Connector Type: USB B
  • Connector to Connector: Pin Header to Type B Mini USB Receptacle
  • Contact Material: Copper
  • Contact Plating: Gold Plated Contacts
  • Contact Resistance: 30mohm
  • Contact Termination: Feed Through
  • Contact Termination Type: Solder
  • Current Rating: 1A
  • Flammability Rating: UL94V-0
  • Gender: Receptacle
  • IP / NEMA Rating: IP68
  • No. of Contacts: 4Contacts
  • No. of Mating Cycles: 1000
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: 0°C
  • Voltage Rating VAC: 30V
