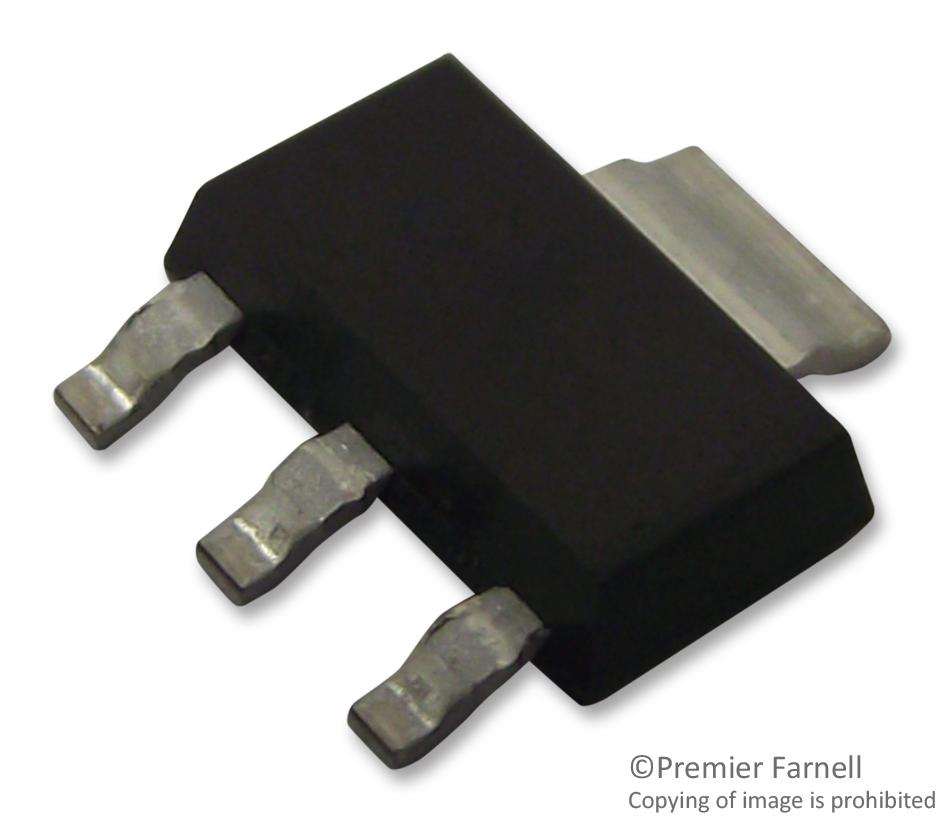

NEXPERIA - PZTA92,115 - Bipolar (BJT) Single Transistor, PNP, 300 V, 100 mA, 1.2 W, SOT-223, Surface Mount
- Transistor Polarity: PNP
- Collector Emitter Voltage V(br)ceo: -300V
- Transition Frequency ft: 50MHz
- Power Dissipation Pd: 1.2W
- DC Collector Current: -100mA
- DC Current Gain hFE: 40hFE
- Transistor Case Style: SOT-223
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Collector Emitter Saturation Voltage Vce(on): -500mV
- Continuous Collector Current Ic Max: 100mA
- Current Ic Continuous a Max: 100mA
- Current Ic hFE: 10mA
- Gain Bandwidth ft Typ: 50MHz
- Hfe Min: 40
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +150°C
- Power Dissipation Ptot Max: 1.2W
- Voltage Vcbo: 300V
