Q3AC 300MMX300MM Sheet Q-Pad 3, .005", 12"x12" Sheet BERGQUIST

BERGQUISTSKU:Q3AC 300MMX300MM SHEET Bestelcode:681465

Prijs:
Actie prijs€101,44

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (156 units)

Documenten en downloads

Omschrijving

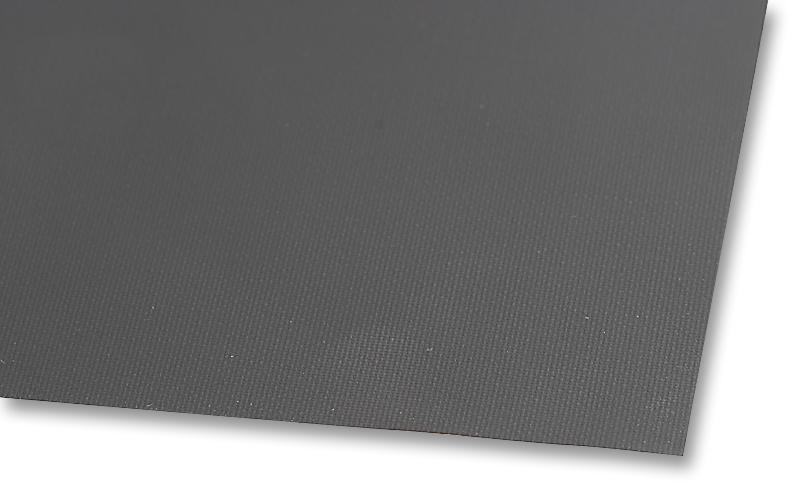

BERGQUIST - Q3AC 300MMX300MM SHEET - Thermal Insulator, Q-Pad 3, .005", 12" x 12" Sheet, Polymer Elastomer, Graphite Loaded, 2 W/m.K

  • Insulator Body Material: Polymer Elastomer, Graphite Loaded
  • Thermal Conductivity: 2W/m.K
  • Breakdown Voltage Vbr: -
  • Thickness: 0.127mm
  • Volume Resistivity: 10ohm-m
  • Thermal Impedance: 0.65°C/W
  • Dielectric Strength: -
  • Product Range: -
  • SVHC: No SVHC (27-Jun-2018)
  • Electrical Property Ins / Con: Conductive
  • External Depth: 0.13mm
  • External Width: 300mm
  • Length: 300mm
  • Material: Graphite Loaded Polymer Elastomer
  • Operating Temperature Max: 180°C
  • Operating Temperature Min: -60°C
  • Operating Temperature Range: -60°C to +180°C
  • Overall Width: 300mm
  • Packages Cooled: TO-220
  • Thermal Resistance: 1.3°C/W
  • Type: Thermal Pad
