Omschrijving

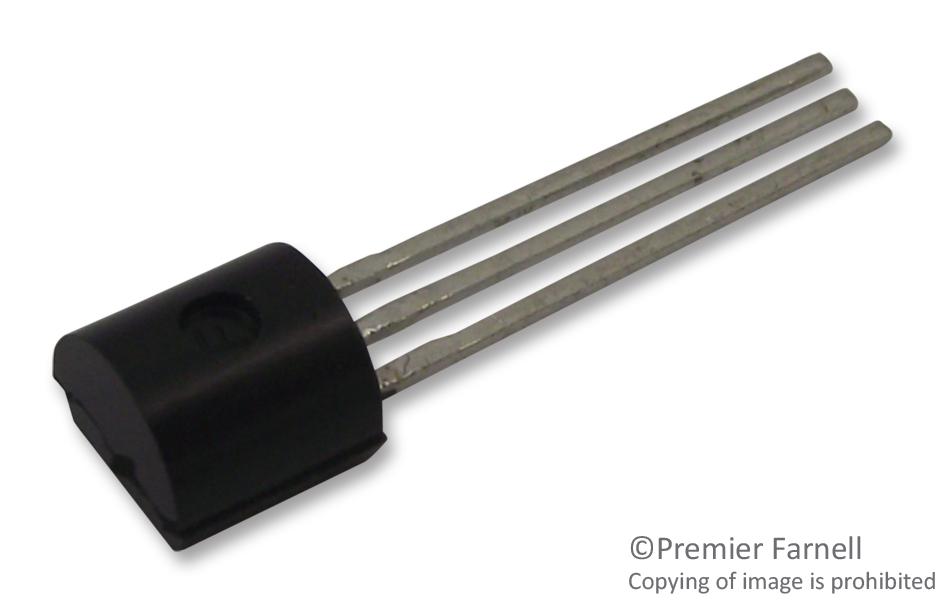

LITTELFUSE - Q401E3 - Triac, Teccor®, 400 V, 1 A, TO-92, 1.3 V, 16.7 A, 15 mA
- Peak Repetitive Off-State Voltage, Vdrm: 400V
- On State RMS Current IT(rms): 1A
- Triac Case Style: TO-92
- Gate Trigger Current Max (QI), Igt: 10mA
- Gate Trigger Voltage Max Vgt: 1.3V
- Peak Gate Power: -
- Peak Non Rep Surge Current Itsm 50Hz: 16.7A
- Holding Current Max Ih: 15mA
- No. of Pins: 3Pins
- Operating Temperature Max: 125°C
- Product Range: Qx01Ex Series
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (07-Jul-2017)
