Omschrijving

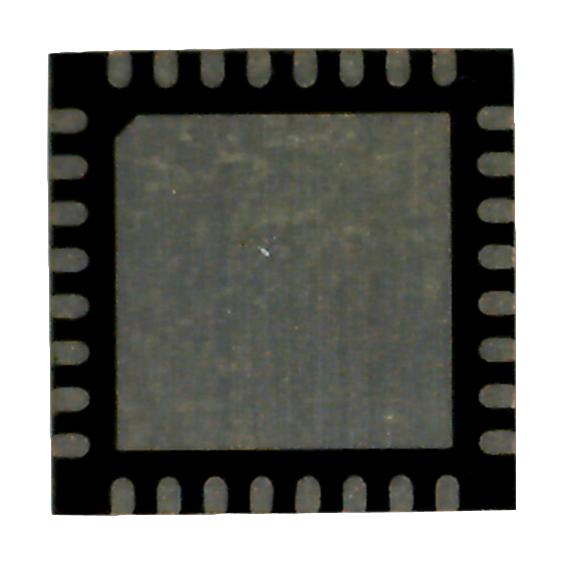

NXP - QN9021/DY - RF Transceiver, 2.4GHz to 2.4835GHz, GFSK, 1Mbps, 4dBm out, -95dBm in, 2.4V to 3.6V, HVQFN-32
- Data Rate: 1Mbps
- RF / IF Modulation: GFSK
- Frequency Min: 2.4GHz
- Frequency Max: 2.4835GHz
- Receiving Current: 9.25mA
- RF IC Case Style: HVQFN
- No. of Pins: 32Pins
- Supply Voltage Min: 2.4V
- Supply Voltage Max: 3.6V
- Transmitting Current: 8.8mA
- Output Power (dBm): 4dBm
- Sensitivity dBm: -95dBm
- RF Transceiver Applications: Sports & Fitness, Healthcare & Medical, Remote Control, Smartphone Accessories, Wireless Sensor N/W
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Product Range: -
- MSL: MSL 3 - 168 hours
- SVHC: No SVHC (15-Jan-2019)
