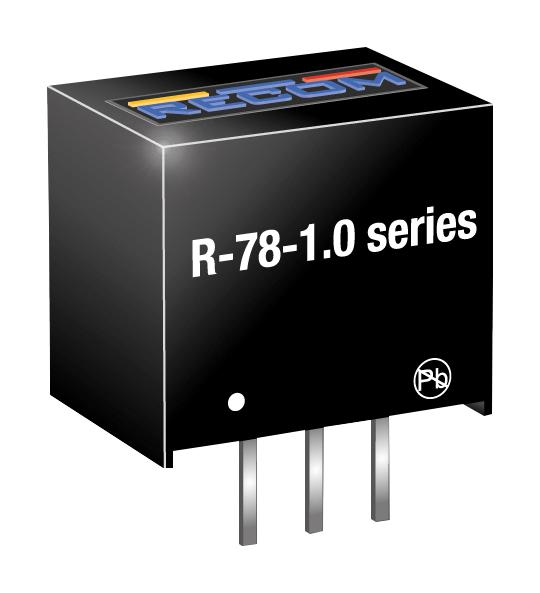

RECOM POWER - R-783.3-1.0 - DC/DC Converter, ITE, 1 Output, 3.3 W, 3.3 V, 1 A, R-78 Series
- No. of Outputs: 1 Output
- Output Power Max: 3.3W
- Output Voltage Nom.: 3.3V
- Output Current Max: 1A
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Mounting: Through Hole
- Input Voltage DC Min: 4.75V
- Input Voltage DC Max: 18V
- DC / DC Converter Type: SIP
- Depth: 11.5mm
- Width: 7.55mm
- Height: 10.2mm
- Product Range: R-78-1.0 Series
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: EN 6060-1, EN 60950-1, IEC 60950-1, UL 60950-1
- Approvals & Standards: IEC, UL
- External Width: 7.55mm
- No. of Outputs: 1Outputs
