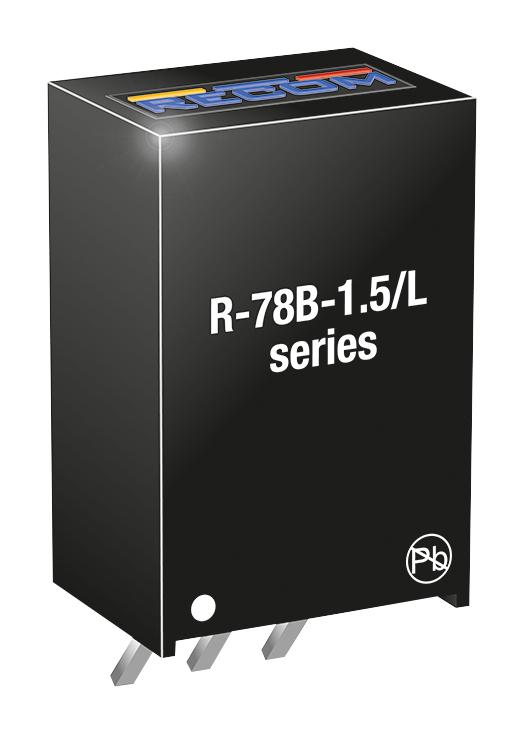

R-78B3.3-1.5 DC-DC Converter, 3.3V, 1.5A RECOM Power

RECOM POWERSKU:R-78B3.3-1.5 Bestelcode:1793158

Prijs:
Actie prijs€19,13

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Nog maar 4 producten leverbaar

Documenten en downloads

Omschrijving

RECOM POWER - R-78B3.3-1.5 - DC/DC Converter, ITE, 1 Output, 4.95 W, 3.3 V, 1.5 A, R-78B Series

  • No. of Outputs: 1 Output
  • Output Power Max: 4.95W
  • Output Voltage Nom.: 3.3V
  • Output Current Max: 1.5A
  • DC / DC Converter Output Type: Fixed
  • DC / DC Converter Mounting: Through Hole
  • Input Voltage DC Min: 4.75V
  • Input Voltage DC Max: 18V
  • DC / DC Converter Type: SIP
  • Depth: 11.5mm
  • Width: 8.5mm
  • Height: 17.5mm
  • Product Range: R-78B-1.5 Series
  • SVHC: No SVHC (15-Jan-2019)
  • Efficiency Max: 95%
  • External Depth: 17.5mm
  • External Length / Height: 11.5mm
  • External Width: 8.5mm
  • Input Voltage Max: 18V
  • Input Voltage Min: 4.75V
  • No. of Outputs: 1Outputs
  • Operating Temperature Max: +85°C
  • Operating Temperature Min: -40°C
  • Output Current: 1.5A
