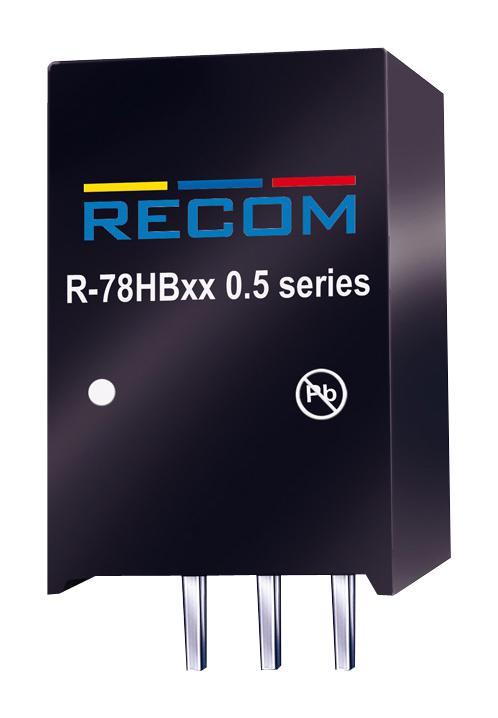

R-78HB3.3-0.5 DC-DC Converter, 3.3V, 0.5A RECOM Power

RECOM POWERSKU:R-78HB3.3-0.5 Bestelcode:1793169

Prijs:
Actie prijs€22,04

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Uitverkocht

Documenten en downloads

Omschrijving

RECOM POWER - R-78HB3.3-0.5 - DC/DC Converter, ITE, 1 Output, 1.65 W, 3.3 V, 500 mA, R-78HB Series

  • No. of Outputs: 1 Output
  • Output Power Max: 1.65W
  • Output Voltage Nom.: 3.3V
  • Output Current Max: 500mA
  • DC / DC Converter Output Type: Fixed
  • DC / DC Converter Mounting: Through Hole
  • Input Voltage DC Min: 9V
  • Input Voltage DC Max: 72V
  • DC / DC Converter Type: SIP
  • Depth: 11.5mm
  • Width: 8.5mm
  • Height: 17.5mm
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2019)
  • Efficiency Max: 96%
  • External Depth: 17.5mm
  • External Length / Height: 11.5mm
  • External Width: 8.5mm
  • Input Voltage Max: 72V
  • Input Voltage Min: 9V
  • No. of Outputs: 1Outputs
  • Operating Temperature Max: +85°C
  • Operating Temperature Min: -40°C
  • Output Current: 500mA
