R114553000 RF Coaxial, SMB, Straight Jack, 50ohm RADIALL

RADIALLSKU:R114553000 Bestelcode:4194524

Prijs:
Actie prijs€19,24

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (810 units)

Documenten en downloads

Omschrijving

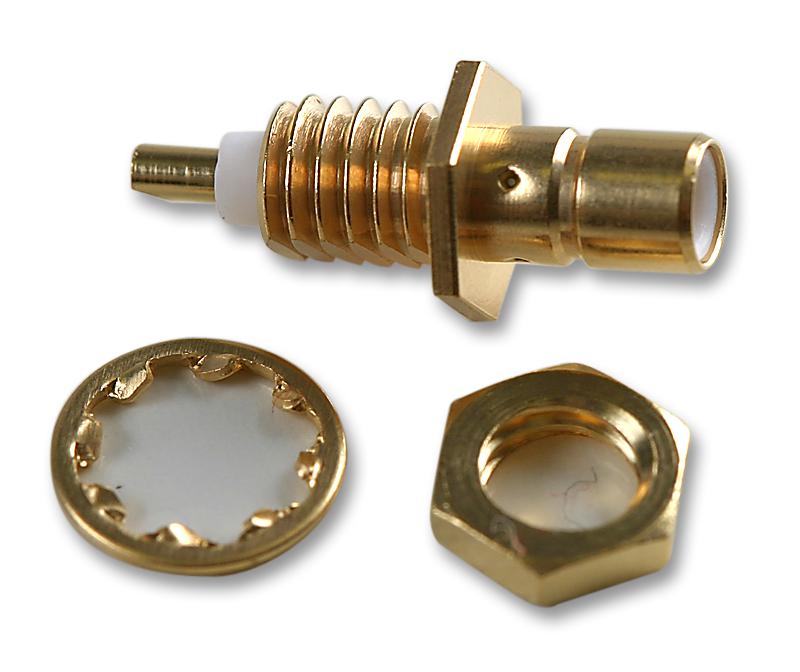

RADIALL - R114553000 - RF / Coaxial Connector, SMB Coaxial, Straight Bulkhead Jack, Solder, 50 ohm, Brass

  • Connector Type: SMB Coaxial
  • Connector Body Style: Straight Bulkhead Jack
  • Coaxial Termination: Solder
  • Impedance: 50ohm
  • Coaxial Cable Types: -
  • Contact Material: Brass
  • Contact Plating: Gold Plated Contacts
  • Frequency Max: 4GHz
  • Connector Mounting: Panel Mount
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2018)
  • Body Plating: Gold
  • Connector Mounting Orientation: Panel
  • Insulation Resistance: 1000Mohm
  • Material: Brass
  • No. of Mating Cycles: 500
  • Operating Frequency Max: 4GHz
  • Operating Temperature Max: 165°C
  • Operating Temperature Min: -65°C
  • Termination Method: Solder
  • Voltage Rating VAC: 335V
  • Withstand Voltage: 500V
