Omschrijving

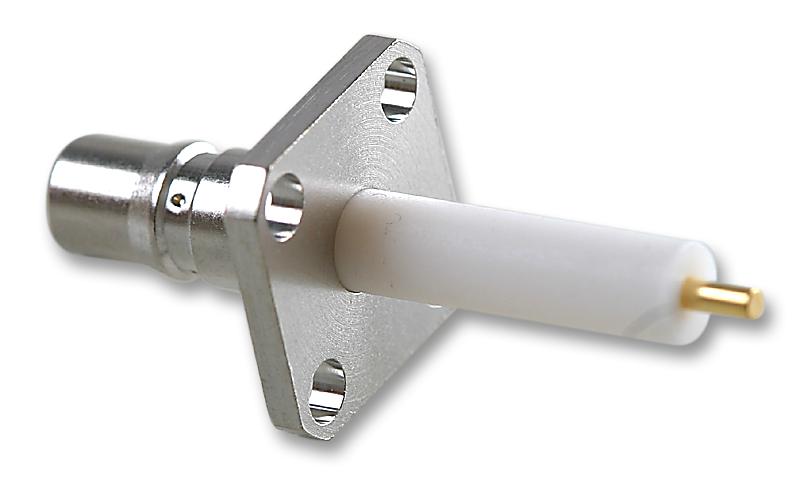

RADIALL - R123415000 - RF / Coaxial Connector, Coaxial, Straight Flanged Jack, 50 ohm, Beryllium Copper
- Connector Type: Coaxial
- Connector Body Style: Straight Flanged Jack
- Coaxial Termination: -
- Impedance: 50ohm
- Coaxial Cable Types: -
- Contact Material: Beryllium Copper
- Contact Plating: Gold Plated Contacts
- Frequency Max: 6GHz
- Connector Mounting: Panel Mount
- Product Range: -
- SVHC: No SVHC (12-Jan-2017)
- Body Plating: Bright Bronze
- Connector Mounting Orientation: Panel
- Insulation Resistance: 5000Mohm
- Material: Beryllium Copper
- No. of Mating Cycles: 100
- Operating Frequency Max: 6Hz
- Operating Temperature Max: 80°C
- Operating Temperature Min: -40°C
- Voltage Rating VAC: 335V
