R13-23B-05-BB Switch, SPST, Latching, Black multicomp Pro

MULTICOMP PROSKU:R13-23B-05-BB Bestelcode:1634634

Prijs:
Actie prijs€3,04

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (1631 units)

Documenten en downloads

Omschrijving

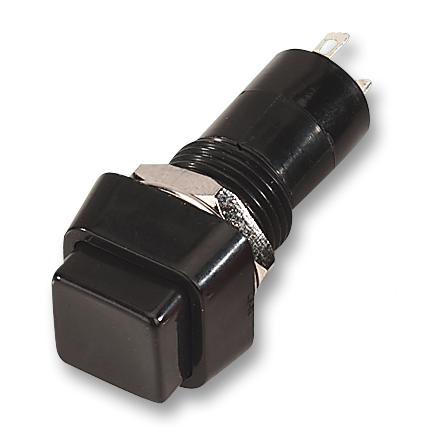

MULTICOMP PRO - R13-23B-05-BB - Pushbutton Switch, R13-23x, 12.2 mm, SPST, Off-On, Square, Black

  • Switch Operation: (Off)-On
  • Contact Configuration: SPST-NC
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Nom: -
  • Contact Current Max: 3A
  • Switch Terminals: Solder Lug
  • Product Range: -
  • Actuation Type: Square
  • Actuator / Cap Colour: Black
  • Bezel Depth: 15.5mm
  • Bezel Height: 6.4mm
  • Bezel Width: 15.5mm
  • Colour: Black
  • Contact Current AC: 1.5A
  • Contact Current AC Max: 3A
  • Contact Resistance: 50mohm
  • Contact Voltage VAC: 125V
  • Height: 22.9mm
  • Illumination Colour: Non-illuminated
  • Insulation Resistance: 100Mohm
  • Insulation Resistance Voltage: 500VDC
  • Material: Phenolic base
  • Operating Temperature Max: 65°C
  • Operating Temperature Min: -20°C
  • Panel Cutout Diameter: 12.2mm
  • Pushbutton Actuator Style: Round
  • Pushbutton Switch Type: Standard
  • Shaft Length: 4mm
  • Switch Mounting: Panel
