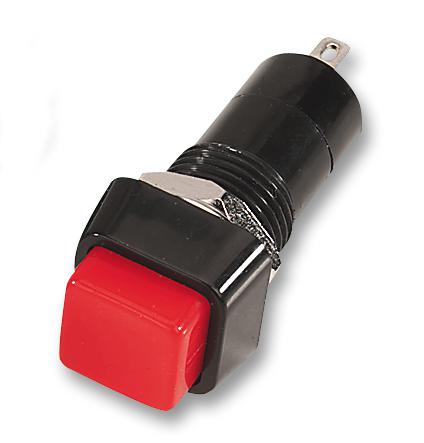

R13-23B-05-Br Switch, SPST, Latching, Red multicomp Pro

MULTICOMP PRO - R13-23B-05-BR - Pushbutton Switch, R13-23x, 12.2 mm, SPST, Off-On, Square, Red

• Switch Operation: (Off)-On
• Contact Configuration: SPST-NC
• Contact Voltage AC Nom: 250V
• Contact Voltage DC Nom: -
• Contact Current Max: 3A
• Switch Terminals: Solder Lug
• Product Range: -
• Actuation Type: Square
• Actuator / Cap Colour: Red
• Bezel Depth: 15.5mm
• Bezel Height: 6.4mm
• Bezel Width: 15.5mm
• Colour: Red
• Contact Current AC: 1.5A
• Contact Current AC Max: 3A
• Contact Resistance: 50mohm
• Contact Voltage VAC: 125V
• Height: 22.9mm
• Illumination Colour: Non-illuminated
• Insulation Resistance: 100Mohm
• Insulation Resistance Voltage: 500VDC
• Material: Phenolic base
• Operating Temperature Max: 65°C
• Operating Temperature Min: -20°C
• Panel Cutout Diameter: 12.2mm
• Pushbutton Actuator Style: Round
• Pushbutton Switch Type: Standard
• Shaft Length: 4mm
• Switch Mounting: Panel
