R13-244B-02-BG-0A Switch, Rocker, DPST, Green Illum. multicomp Pro

MULTICOMP PROSKU:R13-244B-02-BG-0A Bestelcode:1634660

Prijs:
Actie prijs€4,43

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (2643 units)

Documenten en downloads

Omschrijving

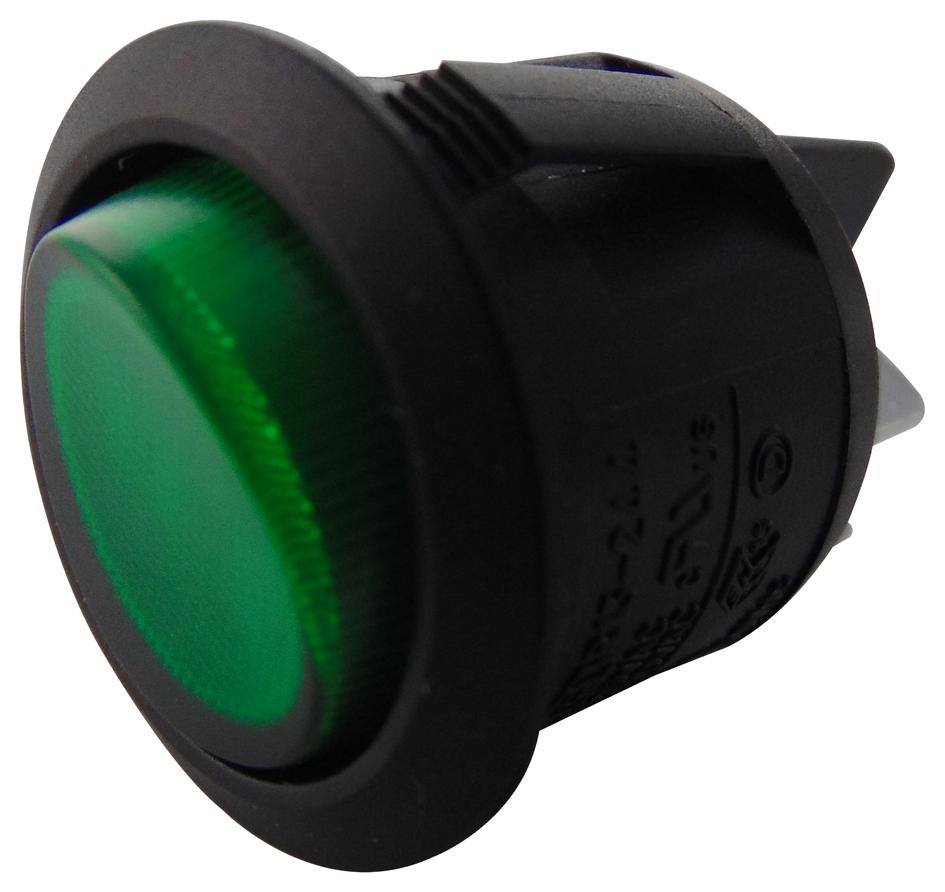

MULTICOMP PRO - R13-244B-02-BG-0A - Rocker Switch, On-Off, DPST, Illuminated, Panel Mount, Green, R13

  • Illumination: Illuminated
  • Contact Configuration: DPST
  • Switch Operation: On-Off
  • Actuator / Cap Colour: Green
  • Switch Mounting: Panel
  • Contact Current Max: 20A
  • Contact Voltage AC Nom: 125V
  • Contact Voltage DC Nom: 28V
  • Product Range: R13 Series
  • Approval Bodies: CQC, CNS, CSA, DEMKO, ENEC, FIMKO, NEMKO, SEMKO, TUV, VDE
  • Approval Category: UL Recognised
  • Bezel Diameter: 25.5mm
  • Colour: Black
  • Contact Current AC: 10A
  • Contact Current AC Max: 16A
  • Contact Resistance: 50mohm
  • Contact Voltage AC Max: 250VAC
  • Height: 15.3mm
  • Height Max: 35.3mm
  • Illumination Colour: Green
  • Insulation Resistance: 100Mohm
  • Insulation Resistance Voltage: 500VDC
  • Operating Temperature Max: 65°C
  • Operating Temperature Min: -20°C
  • Panel Cutout Diameter: 20.2mm
  • Panel Thickness Max: 2.5mm
