Omschrijving

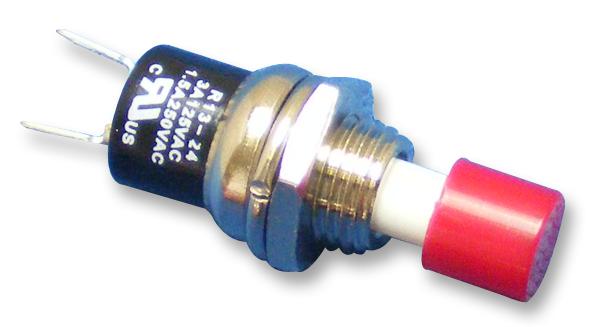

MULTICOMP PRO - R13-24B-05-BR - Pushbutton Switch, R13-24, 7.2 mm, SPST-NC, (Off)-On, Round, Red
- Switch Operation: (Off)-On
- Contact Configuration: SPST-NC
- Contact Voltage AC Nom: 125V
- Contact Voltage DC Nom: -
- Contact Current Max: 3A
- Switch Terminals: Solder Lug
- Product Range: -
- Actuation Type: Round
- Actuator / Cap Colour: Red
- Bush Length: 6mm
- Colour: Red
- Contact Current AC: 1.5A
- Contact Current AC Max: 3A
- Contact Resistance: 50mohm
- Contact Voltage VAC: 125V
- Height: 9.1mm
- Illumination Colour: Non-illuminated
- Insulation Resistance: 100Mohm
- Insulation Resistance Voltage: 500VDC
- Material: Brass
- Operating Temperature Max: 65°C
- Operating Temperature Min: -20°C
- Panel Cutout Diameter: 7.2mm
- Pushbutton Actuator Style: Round
- Pushbutton Switch Type: Standard
- Shaft Diameter: 6mm
- Shaft Length: 8.6mm
- Switch Mounting: Panel
- Thread Size: M7 x 0.75
