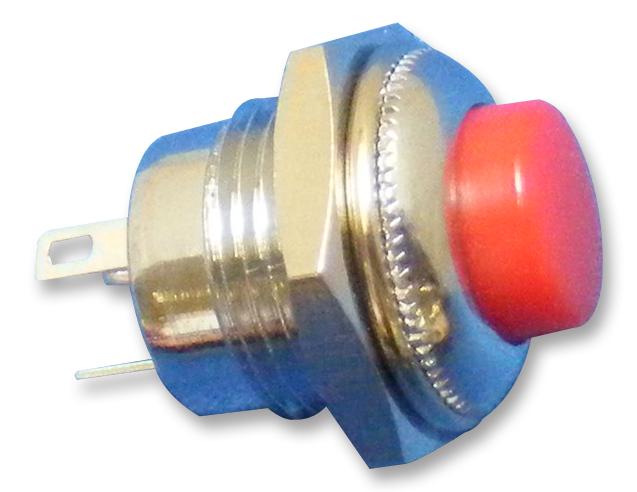

R13-502MC-05-R Switch, Red Push Button, SPDT multicomp Pro

MULTICOMP PROSKU:R13-502MC-05-R Bestelcode:1634625

Prijs:
Actie prijs€6,42

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (848 units)

Documenten en downloads

Omschrijving

MULTICOMP PRO - R13-502MC-05-R - Pushbutton Switch, 12.7 mm, SPDT, On-(On), Round Raised, Red

  • Switch Operation: On-(On)
  • Contact Configuration: SPDT
  • Contact Voltage AC Nom: 125V
  • Contact Voltage DC Nom: -
  • Contact Current Max: 3A
  • Switch Terminals: Solder Lug
  • Product Range: -
  • Actuation Type: Round
  • Actuator / Cap Colour: Red
  • Approval Bodies: UL
  • Bezel Diameter: 16mm
  • Case Material: Nickel Plated Brass
  • Colour: Red
  • Contact Current AC: 1.5A
  • Contact Current AC Max: 3A
  • Contact Resistance: 50mohm
  • Contact Voltage VAC: 125V
  • Dielectric Strength VDC: 500VDC
  • External Length / Height: 17.3mm
  • Flammability Rating: UL 94V-2
  • Illumination Colour: Non-illuminated
  • Insulation Resistance: 100Mohm
  • Insulation Resistance Voltage: 500VDC
  • Operating Temperature Max: 65°C
  • Operating Temperature Min: -20°C
  • Panel Cutout Diameter: 12.7mm
  • Pushbutton Actuator Style: Raised Round
  • Pushbutton Switch Type: Standard
  • Shaft Diameter: 8.8mm
  • Shaft Length: 3mm
  • Switch Mounting: Panel
