Omschrijving

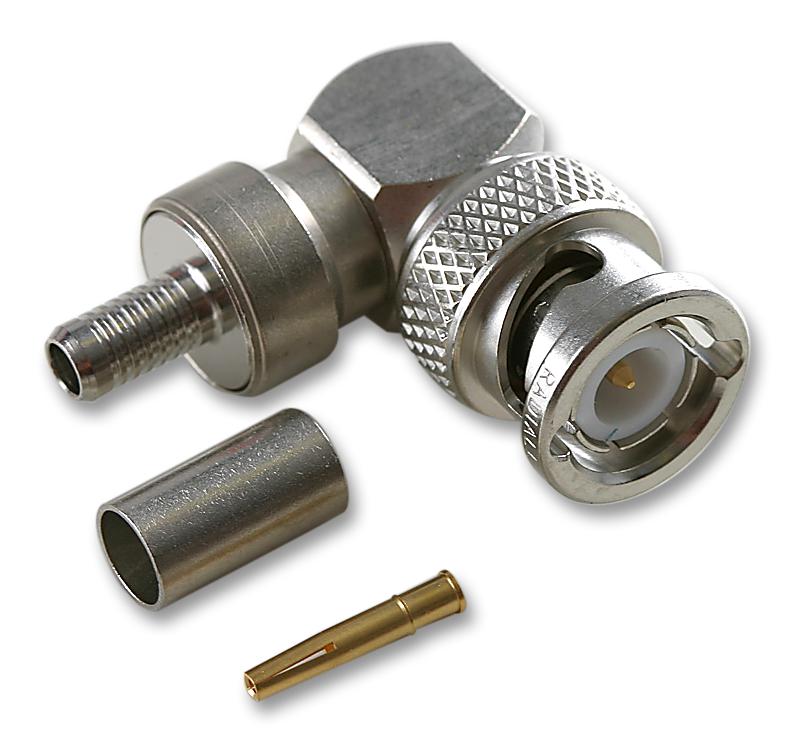

RADIALL - R141182000 - RF / Coaxial Connector, BNC Coaxial, Right Angle Plug, Crimp, 50 ohm, RG58, RG141
- Connector Type: BNC Coaxial
- Connector Body Style: Right Angle Plug
- Coaxial Termination: Crimp
- Impedance: 50ohm
- Coaxial Cable Types: RG58, RG141
- Contact Material: Beryllium Copper
- Contact Plating: Gold Plated Contacts
- Frequency Max: 4GHz
- Connector Mounting: Cable Mount
- Product Range: -
- SVHC: No SVHC (12-Jan-2017)
- Body Plating: Nickel
- Coaxial Type: RG58C/U, RG141A/U, RG303/U, URM43, URM72, URM76, URM108, URM301, KX15, LRM200
- Connector Mounting Orientation: Cable
- Insulation Resistance: 5000Mohm
- Material: Brass
- No. of Mating Cycles: 500
- Operating Frequency Max: 4GHz
- Operating Temperature Max: 165°C
- Operating Temperature Min: -65°C
- Termination Method: Crimp
- Voltage Rating VAC: 500V
- Withstand Voltage: 1000V
