R141327000 RF Coaxial, BNC, Straight Jack, 50ohm RADIALL

RADIALLSKU:R141327000 Bestelcode:4195073

Prijs:
Actie prijs€30,60

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (162 units)

Documenten en downloads

Omschrijving

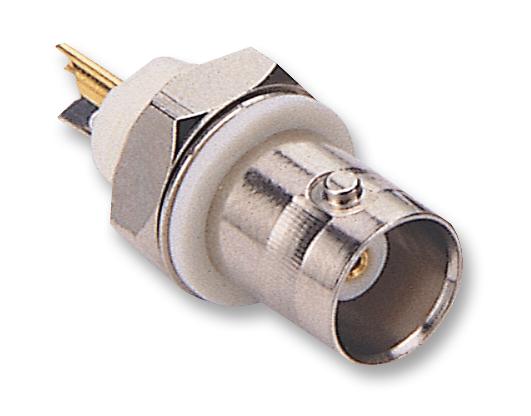

RADIALL - R141327000 - RF / Coaxial Connector, BNC Coaxial, Straight Bulkhead Jack, Solder, 50 ohm

  • Connector Type: BNC Coaxial
  • Connector Body Style: Straight Bulkhead Jack
  • Coaxial Termination: Solder
  • Impedance: 50ohm
  • Coaxial Cable Types: RG58, RG141, RG142, RG142FTX, RG223, RG400
  • Contact Material: Beryllium Copper
  • Contact Plating: Gold Plated Contacts
  • Frequency Max: 4GHz
  • Connector Mounting: Panel Mount
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2018)
  • Body Plating: Gold
  • Coaxial Type: RG55B/U, RG58C/U, RG141A/U, RG142B/U, RG223/U, RG303/U, RG400/U, URM43, URM72, URM76, URM108, URM301, KX15, KX23, LMR200
  • Connector Mounting Orientation: Panel
  • Insulation Resistance: 5000Mohm
  • Material: Brass
  • No. of Mating Cycles: 500
  • Operating Frequency Max: 4GHz
  • Operating Temperature Max: 165°C
  • Operating Temperature Min: -65°C
  • Termination Method: Clamp
  • Voltage Rating VAC: 500V
  • Withstand Voltage: 1000V
