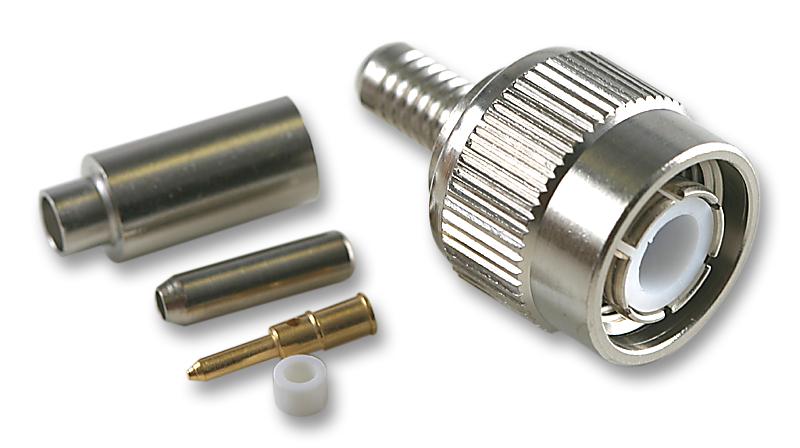

R143075000 RF Coaxial, TNC, Straight Plug, 50ohm RADIALL

RADIALLSKU:R143075000 Bestelcode:4195528

Prijs:
Actie prijs€27,06

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (462 units)

Documenten en downloads

Omschrijving

RADIALL - R143075000 - RF / Coaxial Connector, TNC Coaxial, Straight Plug, Crimp, 50 ohm, RG174, RG174FTX, RG188, RG316

  • Connector Type: TNC Coaxial
  • Connector Body Style: Straight Plug
  • Coaxial Termination: Crimp
  • Impedance: 50ohm
  • Coaxial Cable Types: RG174, RG174FTX, RG188, RG316
  • Contact Material: Brass
  • Contact Plating: Gold Plated Contacts
  • Frequency Max: 11GHz
  • Connector Mounting: Cable Mount
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2018)
  • Coaxial Type: RG174 A/U, RG142, RG188 A/U, RG316/U, URM95, URM109, URM116, KX3B, KX22A
  • Connector Mounting Orientation: Cable
  • Insulation Resistance: 5000Mohm
  • Material: Brass
  • No. of Mating Cycles: 500
  • Operating Frequency Max: 11GHz
  • Operating Temperature Max: 165°C
  • Operating Temperature Min: -65°C
  • Termination Method: Crimp
  • Voltage Rating VAC: 500V
  • Withstand Voltage: 1000V
