R162017000 RF Coaxial, N, Straight Plug, 75ohm RADIALL

RADIALLSKU:R162017000 Bestelcode:8591733

Prijs:
Actie prijs€37,02

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Nog maar 2 producten leverbaar

Documenten en downloads

Omschrijving

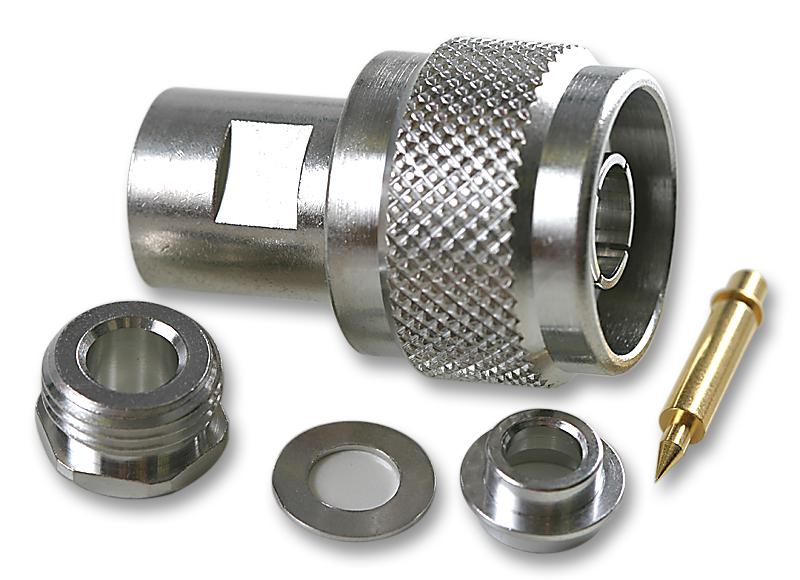

RADIALL - R162017000 - RF / Coaxial Connector, N Coaxial, Straight Plug, Solder, 75 ohm, RG11, RG144, RG216, Brass

  • Connector Type: N Coaxial
  • Connector Body Style: Straight Plug
  • Coaxial Termination: Solder
  • Impedance: 75ohm
  • Coaxial Cable Types: RG11, RG144, RG216
  • Contact Material: Brass
  • Contact Plating: Gold Plated Contacts
  • Frequency Max: 1.5GHz
  • Connector Mounting: Cable Mount
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2018)
  • Coaxial Type: KX8, RG11, RG144, RG216
  • Connector Mounting Orientation: Cable
  • Insulation Resistance: 5000Mohm
  • No. of Mating Cycles: 500
  • Operating Frequency Max: 1.5GHz
  • Operating Temperature Max: +155°C
  • Operating Temperature Min: -55°C
  • Peak Voltage AC: 1400V
  • Termination Method: Clamp
  • VSWR: 1.06
  • Voltage Rating VAC: 850V
