R162403000 RF COAXIAL, N, STRAIGHT JACK, 75OHM RADIALL

RADIALLSKU:R162403000 Bestelcode:8591750

Prijs:
Actie prijs€26,97

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (50 units)

Documenten en downloads

Omschrijving

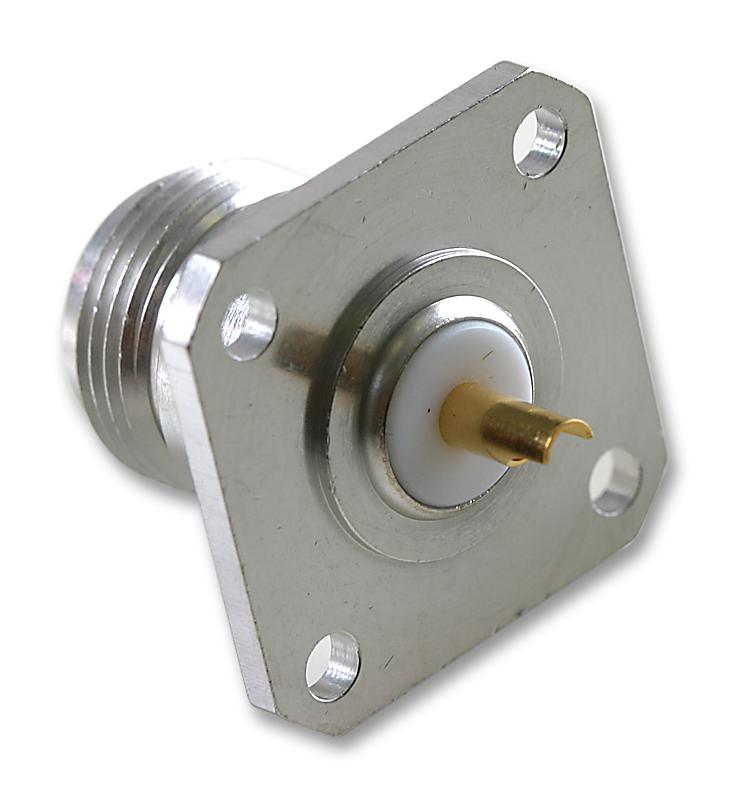

RADIALL - R162403000 - RF / Coaxial Connector, N Coaxial, Straight Flanged Jack, Solder, 75 ohm, Beryllium Copper

  • Connector Type: N Coaxial
  • Connector Body Style: Straight Flanged Jack
  • Coaxial Termination: Solder
  • Impedance: 75ohm
  • Coaxial Cable Types: -
  • Contact Material: Beryllium Copper
  • Contact Plating: Gold Plated Contacts
  • Frequency Max: 1.5GHz
  • Connector Mounting: Panel Mount
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2018)
  • Connector Mounting Orientation: Panel
  • Insulation Resistance: 5000Mohm
  • No. of Mating Cycles: 500
  • Operating Frequency Max: 1.5GHz
  • Operating Temperature Max: +155°C
  • Operating Temperature Min: -55°C
  • Peak Voltage AC: 1400V
  • VSWR: 1.06
  • Voltage Rating VAC: 850V
