Documenten en downloads
Omschrijving

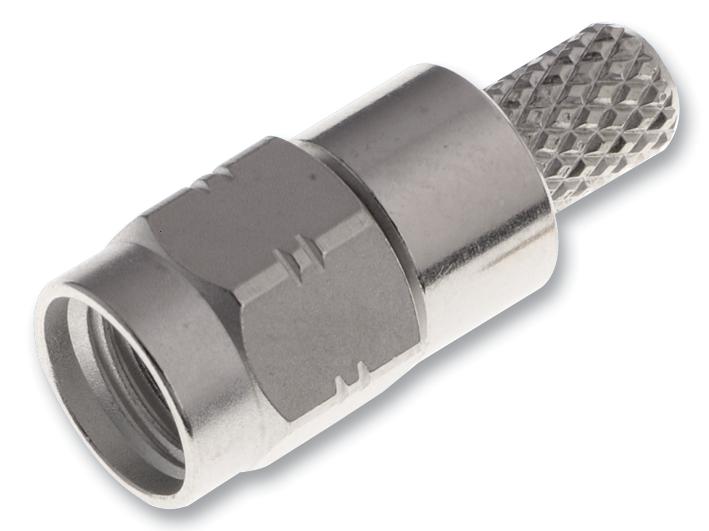

RADIALL - R300124040W - RF / Coaxial Connector, SMA RP Coaxial, Straight Plug, Crimp, 50 ohm, RG316, Beryllium Copper
- Connector Type: SMA RP Coaxial
- Connector Body Style: Straight Plug
- Coaxial Termination: Crimp
- Impedance: 50ohm
- Coaxial Cable Types: RG316
- Contact Material: Beryllium Copper
- Contact Plating: Gold Plated Contacts
- Frequency Max: 12.4GHz
- Connector Mounting: Cable Mount
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Connector Mounting Orientation: Cable
- Insulation Resistance: 5000Mohm
- No. of Mating Cycles: 500
- Operating Temperature Max: 165°C
- Operating Temperature Min: -65°C
- Termination Method: Crimp
- Working Voltage: 250V
