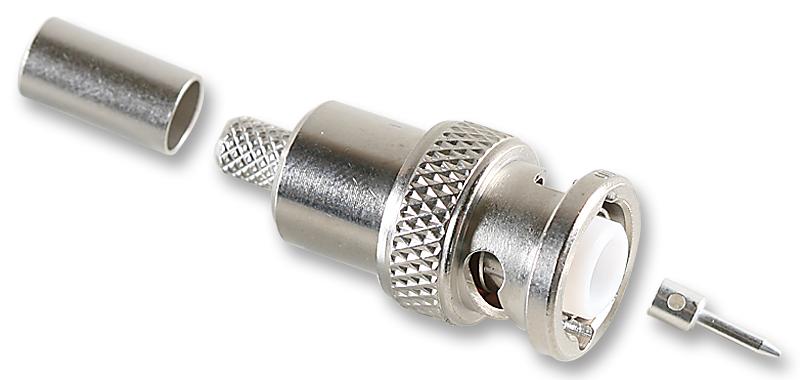

RADIALL - R316072000 - RF / Coaxial Connector, BNC Coaxial, Straight Plug, Crimp, 50 ohm, RG58, RG141
- Connector Type: BNC Coaxial
- Connector Body Style: Straight Plug
- Coaxial Termination: Crimp
- Impedance: 50ohm
- Coaxial Cable Types: RG58, RG141
- Contact Material: -
- Contact Plating: Silver Plated Contacts
- Frequency Max: 2GHz
- Connector Mounting: Cable Mount
- Product Range: BNC-HT/MHV Series
- SVHC: No SVHC (15-Jan-2018)
- Coaxial Type: RG58 C/U, RG141 A/U, RG303/U, URM43, URM72, URM76, URM108, URM301, KX15, LMR 200, RG 55 B/U, RG142 B/U, RG223/U, RG400/U, KX23
- Connector Mounting Orientation: Cable
- No. of Mating Cycles: 500
- Operating Frequency Max: 2GHz
- Operating Temperature Max: 155°C
- Operating Temperature Min: -55°C
- Termination Method: Crimp
