RAC04-24SA Converter, AC/DC, 4W, 3kV, 24V RECOM Power

RECOM POWERSKU:RAC04-24SA Bestelcode:1793176

Prijs:
Actie prijs€41,27

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (6 units)

Documenten en downloads

Omschrijving

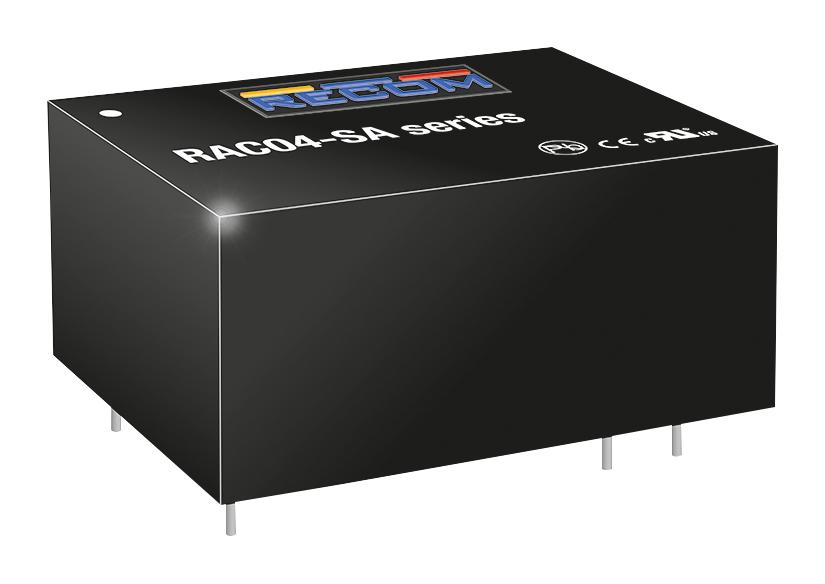

RECOM POWER - RAC04-24SA - AC/DC PCB Mount Power Supply (PSU), ITE, 1 Output, 4 W, 24 V, 167 mA

  • No. of Outputs: 1 Output
  • Output Power Max: 4W
  • Output Voltage - Output 1: 24V
  • Output Current - Output 1: 167mA
  • Output Voltage - Output 2: -
  • Output Current - Output 2: -
  • Output Voltage - Output 3: -
  • Output Current - Output 3: -
  • Power Supply Output Type: Adjustable
  • Input Voltage VAC: 90V AC to 264V AC
  • Width: 27mm
  • Height: 36.7mm
  • Depth: 17.1mm
  • Product Range: RAC04 Series
  • SVHC: No SVHC (15-Jan-2019)
  • Applications: General Purpose
  • Approval Bodies: UL
  • DC / DC Converter Mounting: Through Hole
  • DC / DC Converter Output Type: Fixed
  • Efficiency Max: 77%
  • External Depth: 17.1mm
  • External Length / Height: 36.7mm
  • External Width: 27.2mm
  • Input Voltage AC Max: 264V
  • Input Voltage AC Min: 90V
  • Isolation Voltage: 3kV
  • Length: 36.7mm
  • No. of Outputs: 1Outputs
  • Operating Temperature Max: +70°C
  • Operating Temperature Min: -40°C
  • Output Current Max: 167mA
  • Power Rating: 4W
