Omschrijving

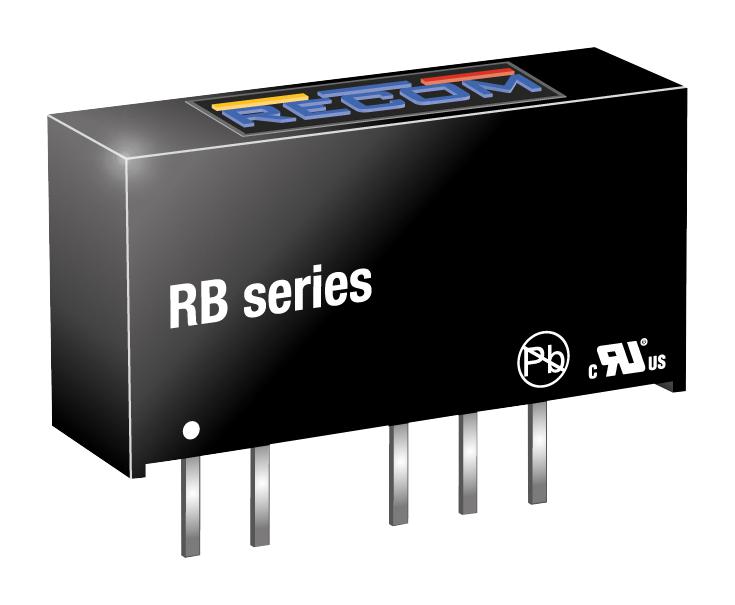

RECOM POWER - RB-2412D - Isolated Through Hole DC/DC Converter, Medical, 1:1, 1 W, 2 Output, 12 V, 42 mA
- No. of Outputs: 2 Output
- Output Power Max: 1W
- Output Voltage - Output 1: 12V
- Output Current - Output 1: 42mA
- Output Voltage - Output 2: -12V
- Output Current - Output 2: 42mA
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: RB Series
- Input Voltage DC Min: 21.6V
- Input Voltage DC Max: 26.4V
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Type: SIP
- DC / DC Converter Mounting: Through Hole
- Width: 6mm
- Height: 10.2mm
- Depth: 19.6mm
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: UL
- Approvals & Standards: UL
- Efficiency Max: 85%
- External Depth: 10.2mm
- External Length / Height: 19.6mm
- External Width: 6mm
- Isolation Voltage: 1kV
- No. of Outputs: 2Outputs
- Operating Temperature Max: +85°C
- Operating Temperature Min: -40°C
- Power Rating: 1W
