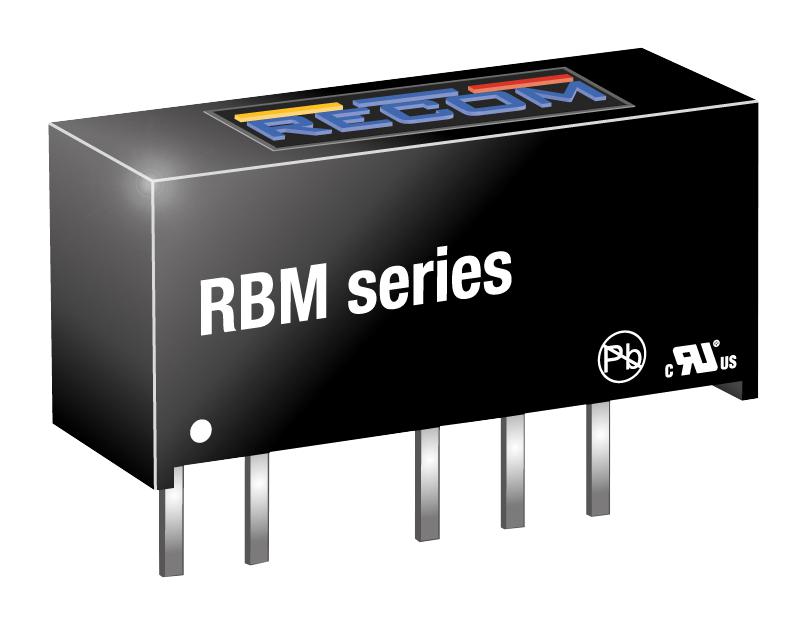

RECOM POWER - RBM-1212D - Isolated Through Hole DC/DC Converter, Medical, 1:1, 1 W, 2 Output, 12 V, 41 mA
- No. of Outputs: 2 Output
- Output Power Max: 1W
- Output Voltage - Output 1: 12V
- Output Current - Output 1: 41mA
- Output Voltage - Output 2: -12V
- Output Current - Output 2: 41mA
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: RBM Series
- Input Voltage DC Min: 10.8V
- Input Voltage DC Max: 13.2V
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Type: SIP
- DC / DC Converter Mounting: Through Hole
- Width: 6mm
- Height: 7.7mm
- Depth: 16.55mm
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: EN 60601
- Approvals & Standards: IEC 60601
- Isolation Voltage: 3kV
- No. of Outputs: 2Outputs
- Power Rating: 1W
