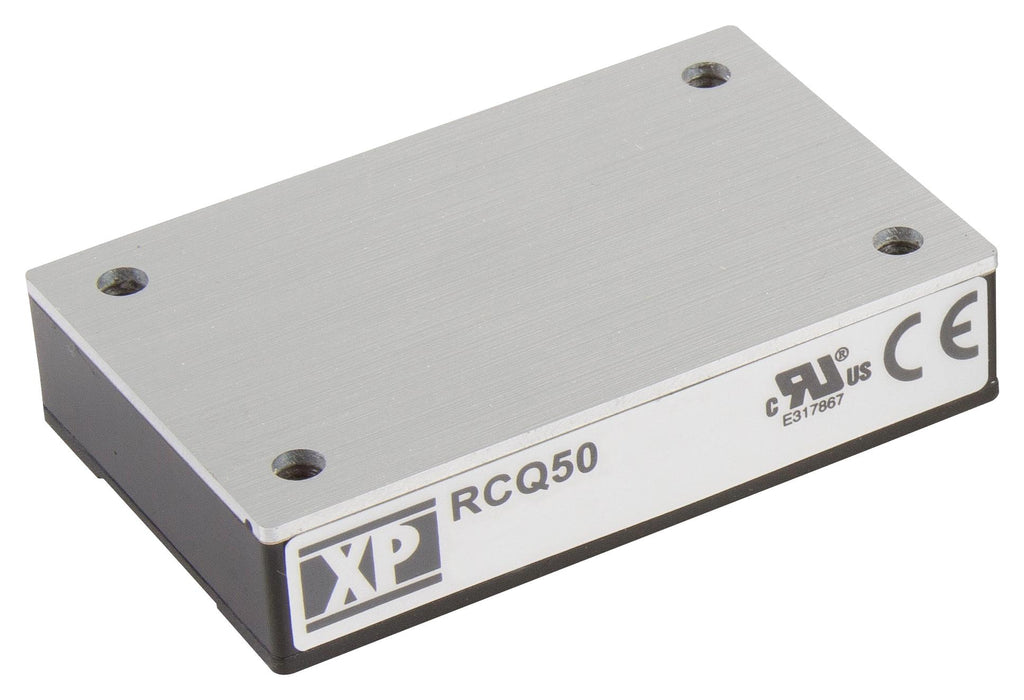

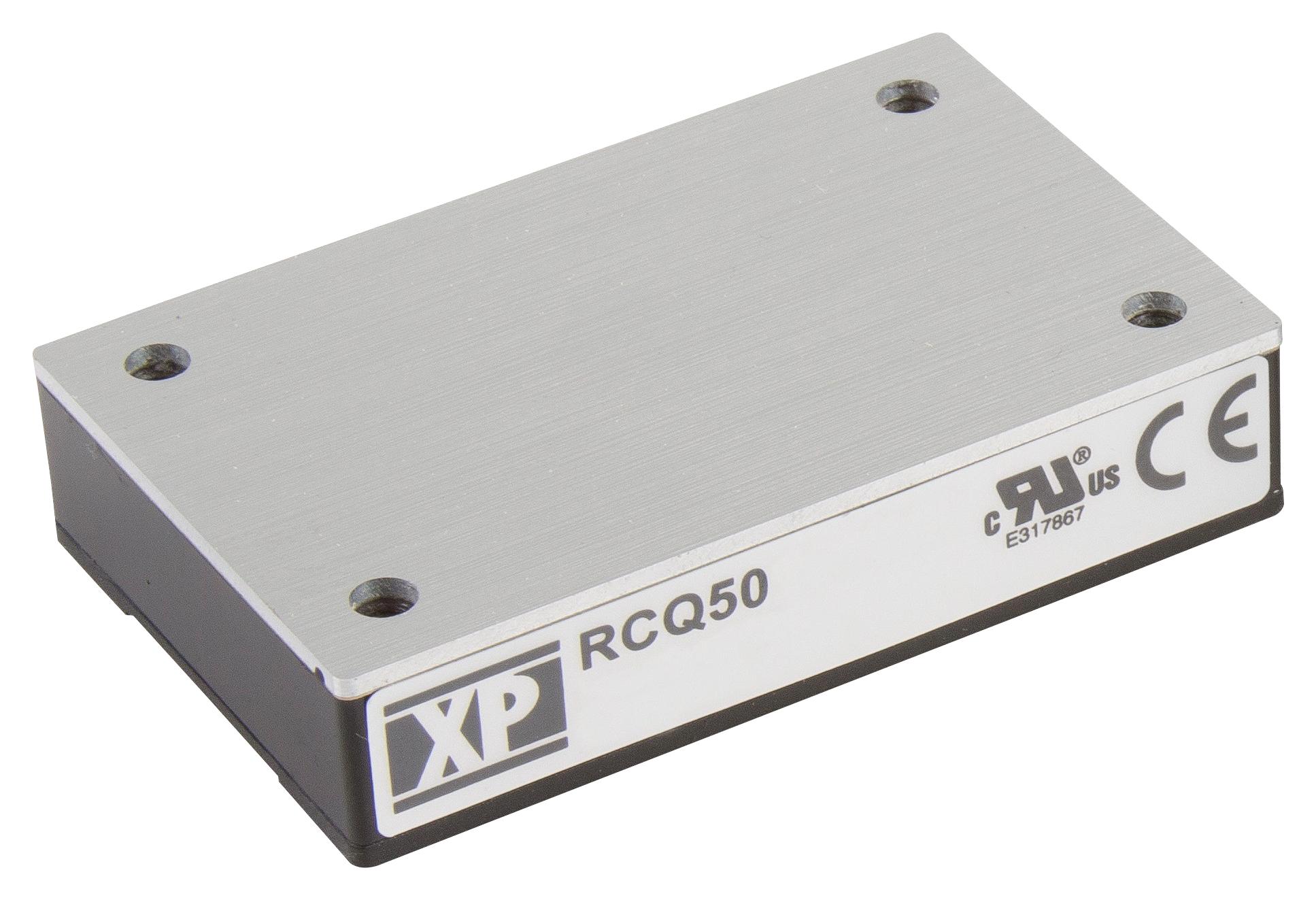

XP POWER - RCQ5072S15 - Isolated Through Hole DC/DC Converter, Railway, 2:1, 50 W, 1 Output, 15 V, 3.33 A
- No. of Outputs: 1 Output
- Output Power Max: 50W
- Output Voltage - Output 1: 15V
- Output Current - Output 1: 3.33A
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: RCQ50 Series
- Input Voltage DC Min: 43V
- Input Voltage DC Max: 101V
- DC / DC Converter Output Type: Fixed, Adjustable
- DC / DC Converter Type: DIP
- DC / DC Converter Mounting: Through Hole
- Width: 36.8mm
- Height: 12.5mm
- Depth: 57.9mm
- SVHC: No SVHC (15-Jan-2018)
- Approvals & Standards: IEC, UL
